Flange Identification Templates


Stop flange size confusion in its tracks!

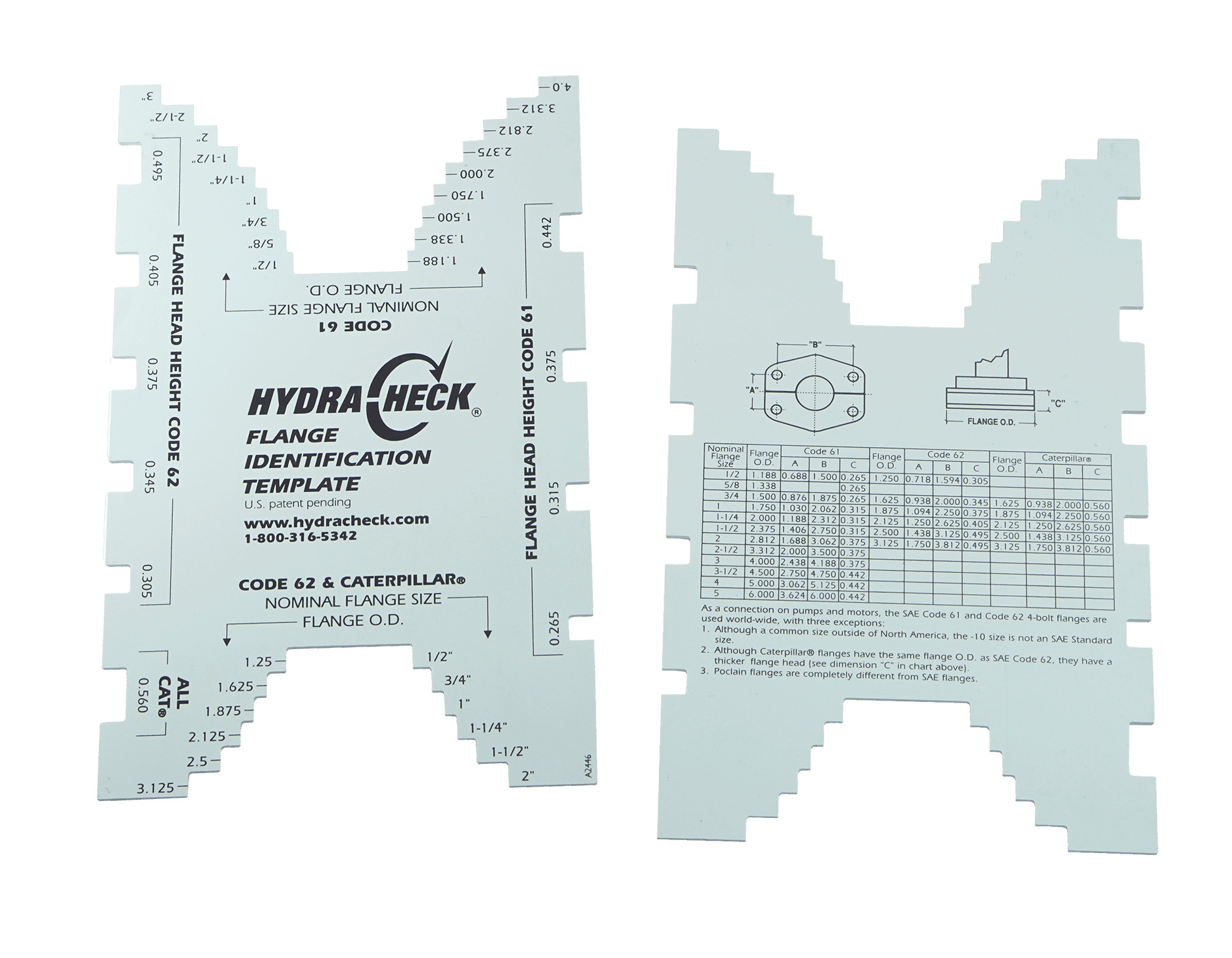

This immensely useful template will enable you to measure flange O.D. and flange head height. There are subtle differences between SAE Code 61, 62 and Caterpillar® flanges that are not readily identifiable. An error in application could result in an accident that could cause severe injury or death.

Assembly-line personnel, engineers, field service personnel, sales personnel and draftspersons will find this instrument invaluable in getting flange identification right the first time!

Ask about how you can get personalized templates with your company logo/name.

SKU: HC-8470-1429 Category:
Print Friendly, PDF & Email

Additional information

Weight .075 lbs
Dimensions 8 × 5 × 0.1 in
