Additional information
| Weight | 1.58125 lbs |
|---|---|
| Dimensions | 3 × 3 × 0.75 in |
| Size | 2 in |
| Flange Outside Diameter | 3.125 in |
| Pressure | 3000 PSI |

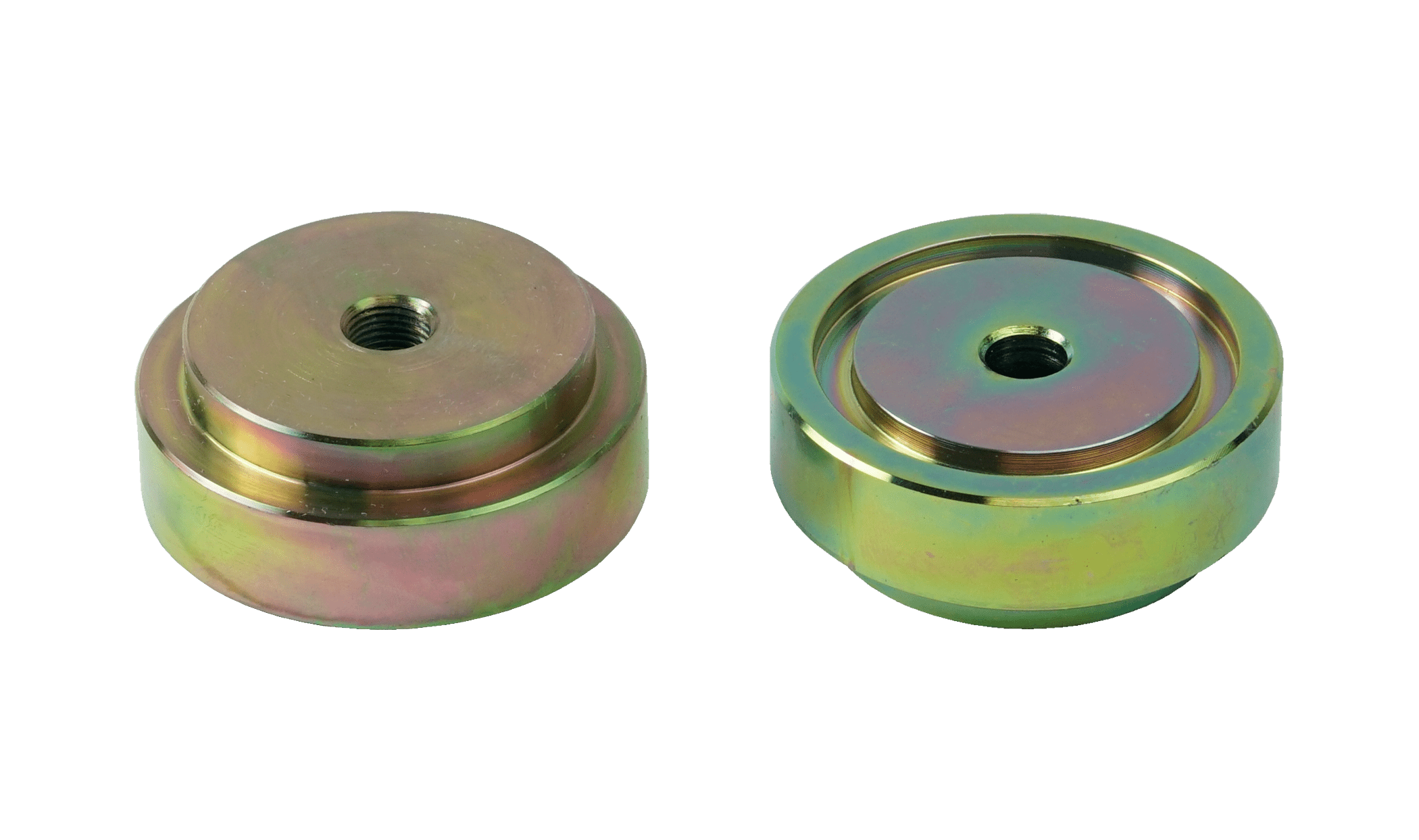

CAT Flange Plug with M16x2 Test Point, #32
$56.55
For use with the Pressure/Leak, Hand-operated Pump
These HydraCheck connectors are designed exclusively for pressure/leak testing components with split flange connectors.
Simply remove the transmission line and install the HydraCheck pressure/leak connector – you are ready to test!
Comes with STAUFF Test 20 (M16x2) connector.
HydraCheck-designed, Caterpillar-style, split flange plugs vary slightly from the standard Code 62 interface. These connectors are designed to interface with components installed on Caterpillar equipment.
Specifications:
- Size: 2 in
- Flange Outside Diameter: 3.125 in
- Pressure: 3000 PSI (207 Bar)
