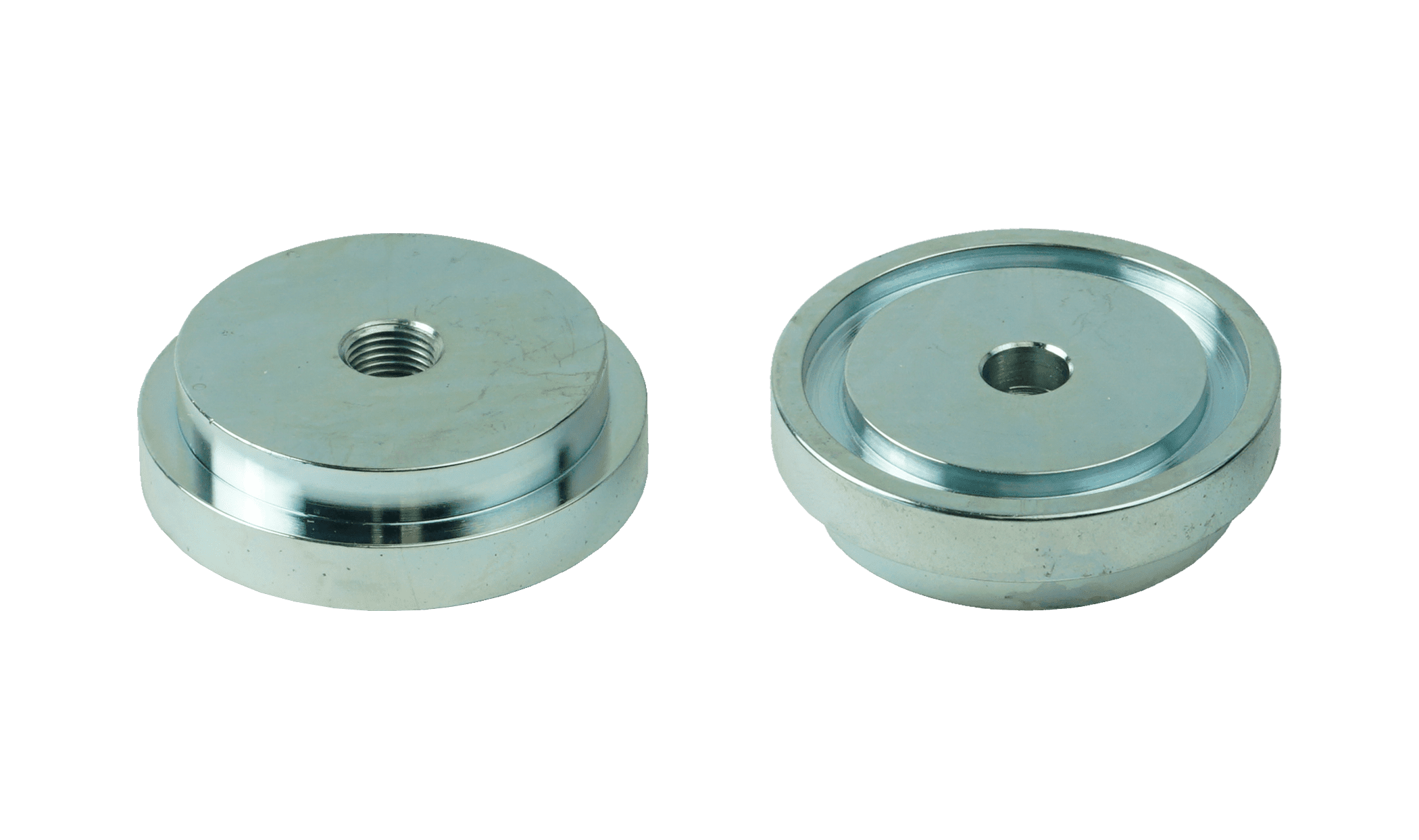

Code 61 Split Flange Plugs

$46.70 – $72.35

For use with the Pressure/Leak, Hand-operated Pump

These HydraCheck connectors are designed exclusively for pressure/leak testing components with split flange connectors. Simply remove the transmission line and install the HydraCheck pressure/leak connector –you are ready to test!

Comes with STAUFF Test 20 (M16x2) connector.

Category: MicroLeak Products

Code 61 Flange Plug with M16x2 Test Point, #8
HC-FP61-08-T20

1/2 in

1.188 in

3000 PSI 207 Bar

$46.70

Code 61 Flange Plug with M16x2 Test Point, #12
HC-FP61-12-T20

3/4 in

1.500 in

3000 PSI 207 Bar

$52.10

Code 61 Flange Plug with M16x2 Test Point, #16
HC-FP61-16-T20

1 in

1.750 in

3000 PSI 207 Bar

$55.70

Code 61 Flange Plug with M16x2 Test Point, #20
HC-FP61-20-T20

1-1/4 in

2.000 in

3000 PSI 207 Bar

$64.85

Code 61 Flange Plug with M16x2 Test Point, #24
HC-FP61-24-T20

1-1/2 in

2.375 in

3000 PSI 207 Bar

$68.60

Code 61 Flange Plug with M16x2 Test Point, #32
HC-FP61-32-T20

2 in

2.812 in

3000 PSI 207 Bar

$72.35

Code 61 Split Flange Plugs
