Additional information
| Weight | 1.09375 lbs |
|---|---|
| Dimensions | 7 × 4.5 × 2.5 in |
| Measuring Range | 0 to +5800 PSI (0 to 400 Bar) |
| Overload (Pmax) | 11,600 PSI (800 Bar) |
| Resolution | 1 PSI |
| Accuracy | 0.5% full scale |
| Connection | 7/16 in ORB |

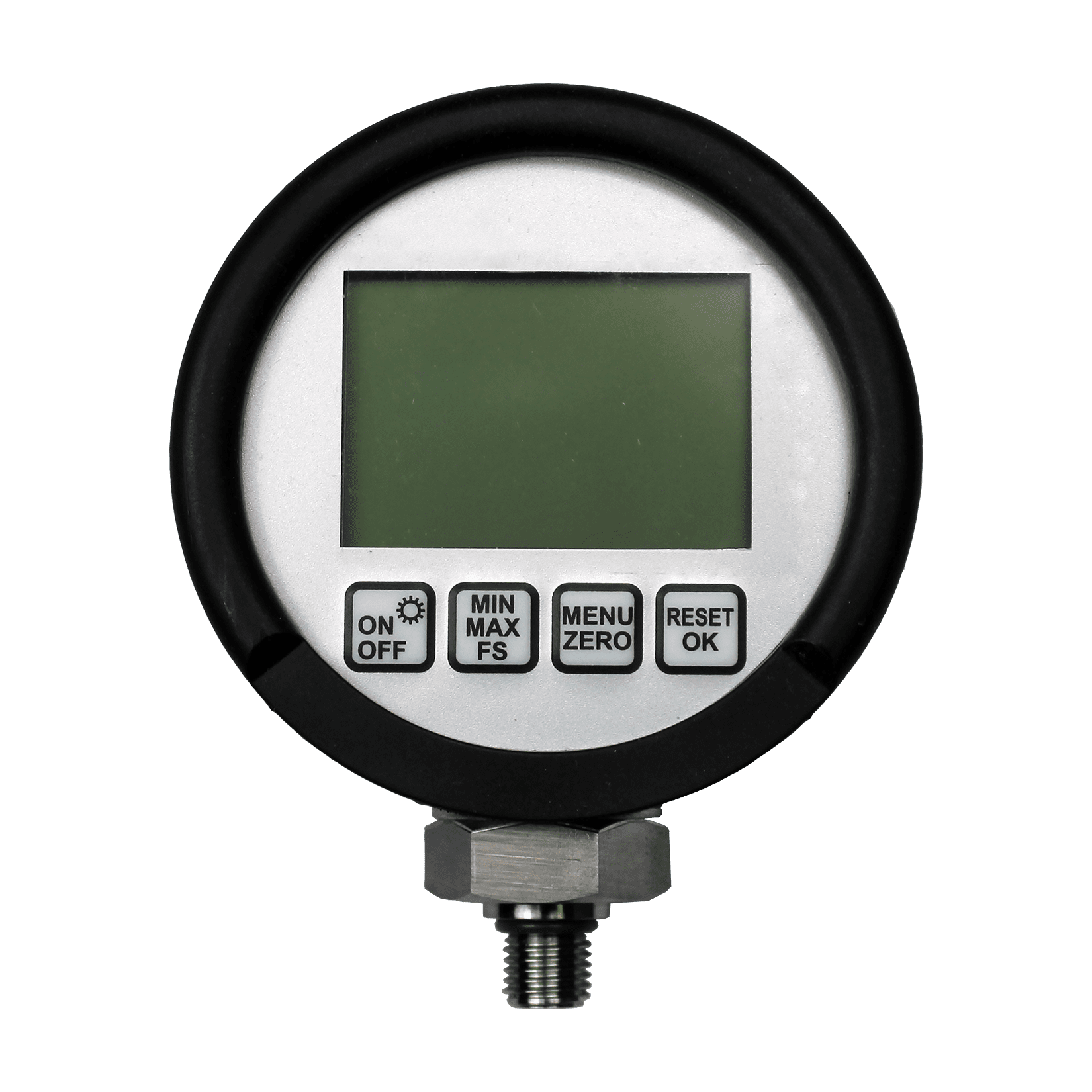

Digital Pressure Gauge, 5800 PSI
$672.00
The HC-063-DIGI-5800 digital pressure gauge offers a quick solution to monitoring pressure and also peak pressure (pressure spikes). The hand-held unit can be installed when required (using a standard test point) or left permanently connected to a system. Since it is battery-powered, the digital gauge requires no external wiring.
The HC-063-DIGI-5800 simultaneously displays actual pressure, peak or minimum pressure, battery level, engineering units, as well as a bar graph indicator. The backlight can be switched on with the press of a button. This digital gauge allows the user to clear the peak value, display min, max, actual pressure, reset the zero point, and change the engineering units.
- Measures pressure and min/max pressure.
- Simple operation.
- Background lighting
- Zero correction
- Battery charge display
- Comes with a 1/4″ NPT adapter
- Made in Germany
Specifications:
- Pressure Range: 0 to +5800 PSI (0 to 400 bar)
- Overload Pressure: 11,600 PSI (800 bar)
- Units: PSI, bar, Mpa, kPa, mbar
- Accuracy: ±0.5% full scale.
- Resolution: 1 PSI
- Ambient Temperature: 14°F to +122°F (-10° to +50°C)
- Media Temperature: -4°F to +176°F (-20° to +80°C)
- Storage Temperature: -4°F to +140°F (-20° to +60°C)
- Relative Humidity: <85%
- Battery Life: 1500 hours (operating without lighting, 2 x AA)
- Pressure Connection: 7/16″ (#4) ORB stainless steel
- Housing Material: Die-cast zinc with TPE rubber protective coating
- Gasket Material: NBR (Buna-N)
- Safety Class: EN 60529 (IP67)
- Vibration: IEC 60068-2-6 (5g)
- Shock: IEC 60068-2-27 (25g)
