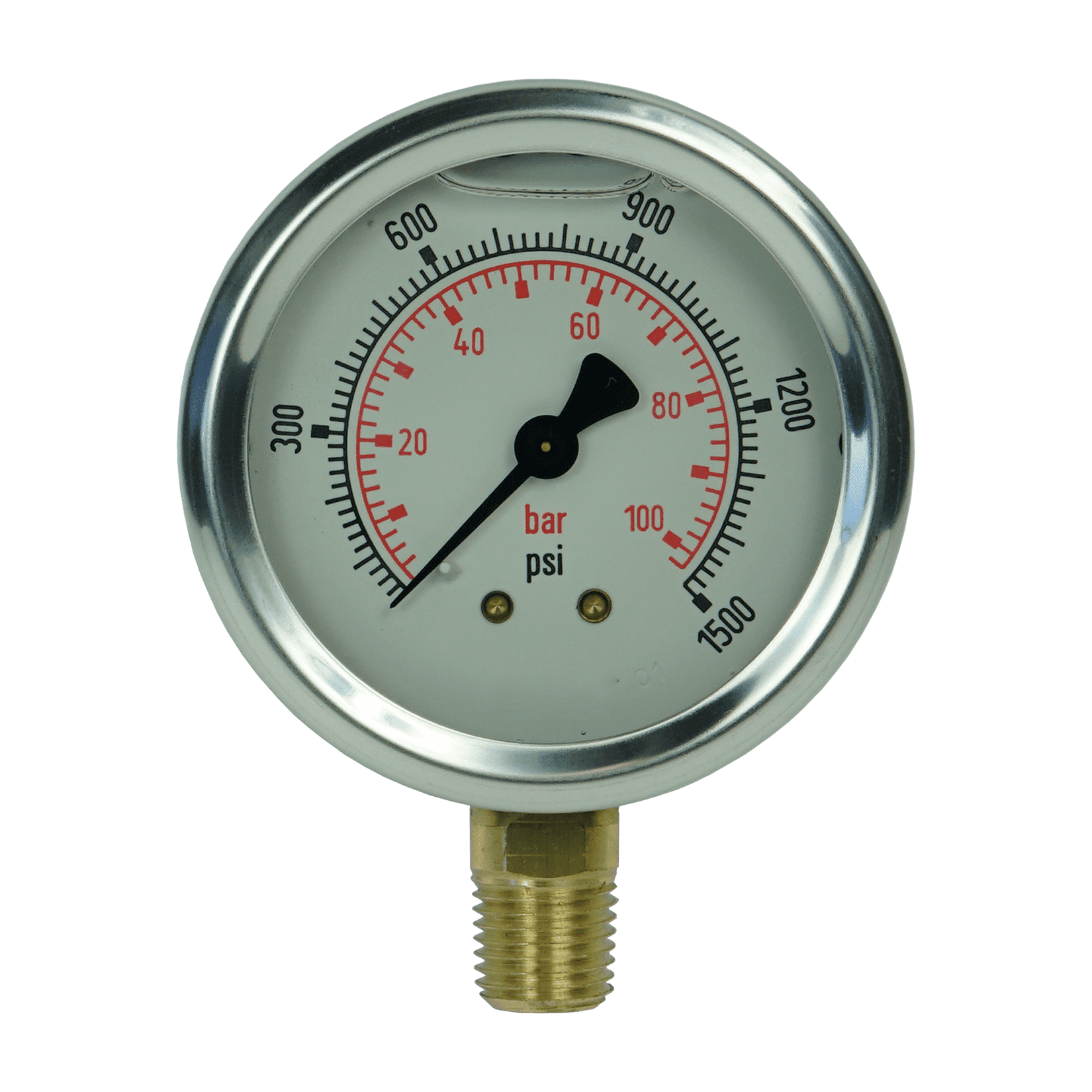

Pressure Gauge, 1500 PSI

$28.10

Highest quality, liquid-filled gauges available in the market today! Features a stainless steel case for protection in harsh environments. Intended for adverse service conditions where pulsating and vibration exist. Suitable for gaseous or liquid media that will not obstruct the pressure system.

Features:

  • Glycerine-filled.
  • PSI and bar scale.
  • 1/4” NPT bottom mount.
  • Size: 2 1/2″ (63mm).
  • Made in the USA.

Specifications:

  • Design: ASME B40.100 & EN 837-1
  • Accuracy: ±2/1/2% of span (ASME B40.100 Grade A)
  • Working Pressure: Steady: 3/4 full-scale value, Fluctuating: 2/3 full-scale value, Short time: Full-scale value
  • Ambient Temperature: -4 – +140°F (-20 – +60°C)
  • Medium Temperature: +140°F (+60°C) Maximum
  • Temperature Error: Additional error when temperature changes from reference temperature of 68°F (20°C) ±0.4% for every 18°F (10°C) rising or falling, Percentage of span.
  • Weather Protection: Weathertight (NEMA 4X/IP65)
  • Pressure Connection Material: Copper alloy
  • Bourdon Tube Material: Copper alloy
  • Movement: Copper Alloy
  • Dial Material: White ABS
  • Pointer Material: Black aluminum
  • Case: 304 stainless steel with vent plug and stainless steel crimp ring. Suitable for liquid filling. Case connection sealed with O-ring (EPMD o-ring).
SKU: HC-1500-WG Category:
Print Friendly, PDF & Email

Additional information

Weight 0.525 lbs
Dimensions 3.5 × 3 × 1.75 in
Pressure

0 to 1500 PSI (103 Bar)

Port Thread

1/4" NPT Lower Mount

Dial Size

2-1/2 in (63 mm)

Ring

Polished Stainless Steel, Crimped

Accuracy

± 2/1/2% of span
