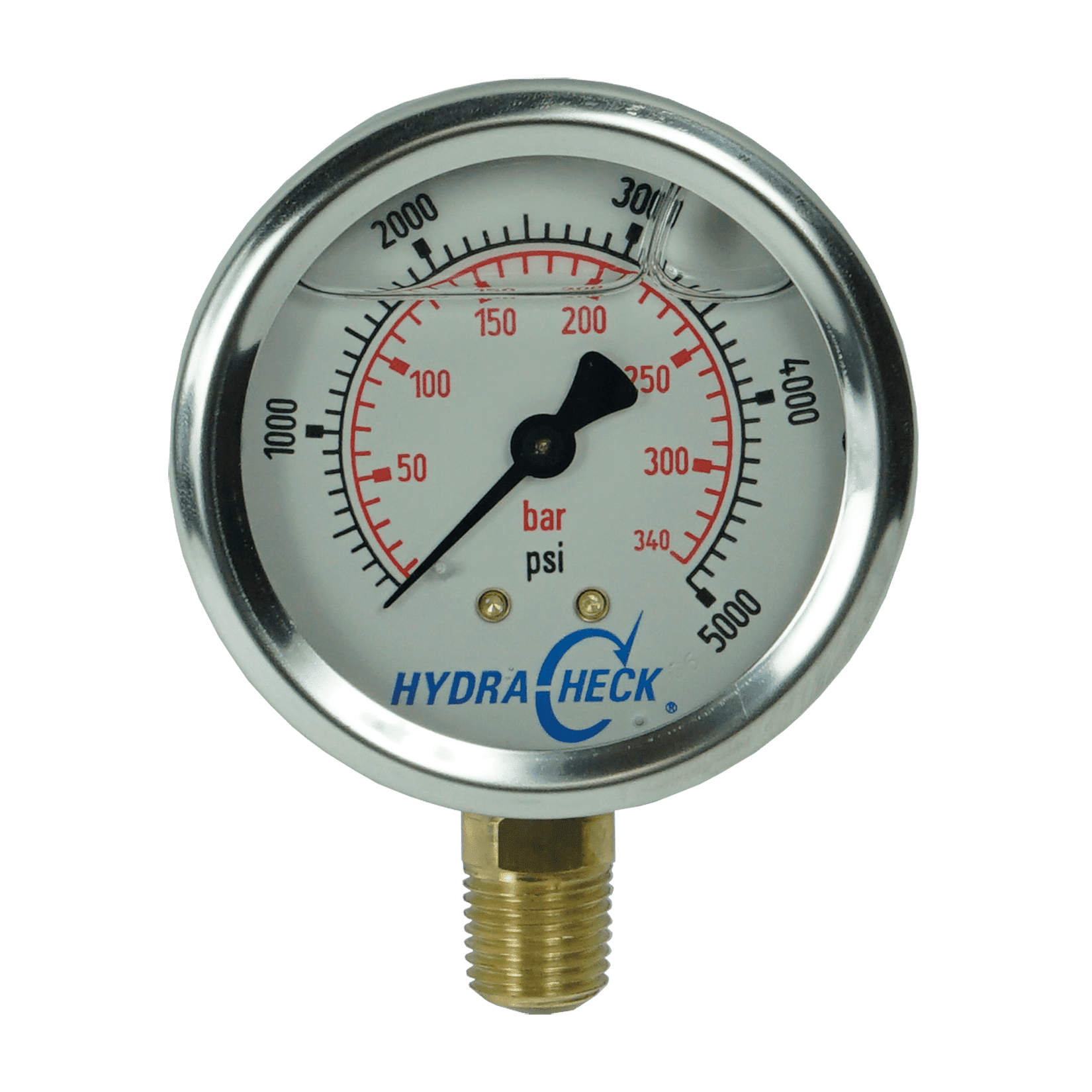

Highest quality, liquid-filled gauges available in the market today! Features a stainless steel case for protection in harsh environments. Intended for adverse service conditions where pulsating and vibration exist. Suitable for gaseous or liquid media that will not obstruct the pressure system.
PSI and bar scale.
1/4” NPT bottom mount.
Size: 2 1/2″ (63mm).
Made in the USA.
Design: ASME B40.100 & EN 837-1
Accuracy: ±2/1/2% of span (ASME B40.100 Grade A)
Working Pressure:Steady: 3/4 full-scale value, Fluctuating: 2/3 full-scale value, Short time: Full-scale value
Ambient Temperature: -4 – +140°F (-20 – +60°C)
Medium Temperature: +140°F (+60°C) Maximum
Temperature Error: Additional error when temperature changes from reference temperature of 68°F (20°C) ±0.4% for every 18°F (10°C) rising or falling, Percentage of span.
Weather Protection: Weathertight (NEMA 4X/IP65)
Pressure Connection Material: Copper alloy
Bourdon Tube Material: Copper alloy
Movement: Copper Alloy
Dial Material: White ABS
Pointer Material: Black aluminum
Case: 304 stainless steel with vent plug and stainless steel crimp ring. Suitable for liquid filling. Case connection sealed with O-ring (EPMD o-ring).
If you need extra protection you can add the Rubber Gauge Boot to keep your gauge safe.
