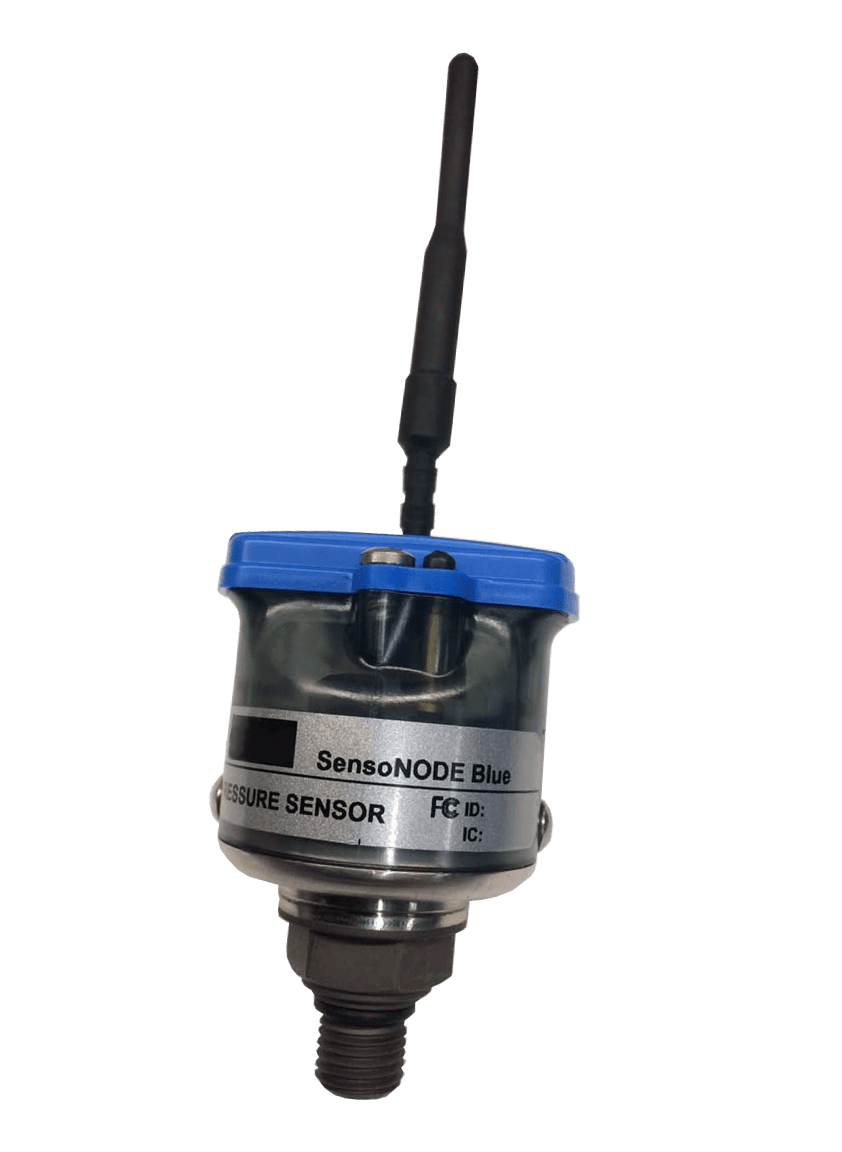

SensoNODE Blue – Bluetooth Pressure Sensor, 150 PSI, 1/4″ NPT
SensoNODE Blue is Parker’s series of Bluetooth-enabled sensors. Compact, energy-efficient, and wireless, they are designed to provide simple and useful solutions for diagnostic and condition monitoring applications with mobile devices. SensoNODE monitors asset measurements to help predict problems and prevent downtime.
Gather measurements from a distance without interrupting production
Wireless installation removes the challenges of wired systems
Avoid potentially dangerous situations
Diagnose issues quickly
Share data direct from your mobile device
No external power source required
Ultra-low battery consumption for up to five years of battery life*
Sealed sensor housing ideal for harsh environments
Compact lightweight design
LED indicators aid in identifying sensor status
* Not continuous use
Connection Distance: 1000 feet (line of sight)
User-definable measurement units (psi/bar) for convenient and familiar data readings.
Port options: Male NPT or SAE thread depending on the pressure range.
Corrosion-resistant materials for challenging environments.
The sensor also provides ambient temperature values.
User-selectable measurement and broadcast intervals. Refer to the Voice of the Machine Mobile App for more information about capabilities and modalities.
Pressure Rating: 0 to 150 PSI (0 to 10 bar).
Max Overload Pressure: 225 PSI
Burst Pressure: 4x
Resolution: 0.1 PSI
Housing Material: Polycarbonate
Wetted Parts Material: 17-4 Stainless Steel
Measurement Range: -14.5 to 8700 PSI (-1 to 600 bar)
Units: PSI, bar
Accuracy: 1.5% at 77°F (25°C)
Measurement and Broadcast Interval: User Selectable
Response Time: 1 sec
Ambient Temperature (battery limited): -4°F to 158°F (-20°C to 70°C)
Fluid Media Temperature: -40°F to 185°F (-40°C to 85°C)
