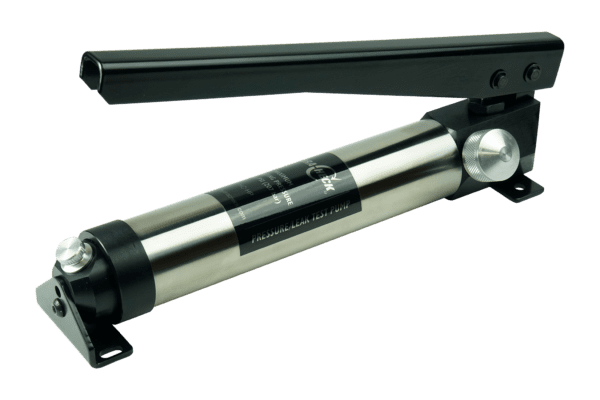

Pressure/Leak Hand Pump, 3000 PSI

$349.23

Our hand pumps are lightweight and compact in design to minimize operator fatigue. All pumps are made to be corrosion resistant featuring stainless steel, aluminum, and other corrosion resistant materials.

Specifications:

  • Lightweight & compact in design.
  • Low handle effort to minimize operator fatigue.
  • Corrosion resistance – stainless steel, aluminum, and corrosion resistant materials – standard in all pumps.
  • Pump body and reservoir end cap – machined and anodized aluminum.
  • System pressure release valve – externally replaceable cartridge type & cannot be over tightened when closing.
  • Pressure ports – two ports standard. Port #1 (9/16″ SAE) is out front of pump body and port #2 (1/4″ NPT) is on left side of pump body.
  • Internal pressure relief valve for overload protection.
  • Inlet and outlet check valves – zero leakage/leak proof stainless steel.
  • Rear end cap – standard has oil filler cap.
  • Dimensions: 16 x 4 x 4 in (406 x 102 x 102 mm)
  • Weight: 6 lb (2.72 kg)
  • Pressure: Set at 3000 PSI (207 Bar)
SKU: HC-HP Category:

Additional information

Weight 5 lbs
Dimensions 14 × 4 × 3 in
