DT-725 Stroboscope with Rechargeable Battery Kit

$695.00

The DT-725 stroboscope provides the illusion of “stopped motion”: by adjusting the strobe’s flash rate, equipment appears to be standing still or in slow motion. Constructed of strengthened high impact plastic, these rugged units are exceptionally reliable and withstand harsh conditions. Employing its unique phase shifting feature, the DT-725 “freezes” rotating or reciprocating machinery for visual inspection without stopping production. These features make the DT-725 ideal for quality inspection and preventive maintenance of automated motion equipment.

Features:

  • Bright LED Display Aids viewing in poorly lit areas
  • Light Weight Design
  • An external trigger allows the unit to be automatically synchronized with equipment
  • Continuous duty cycle eliminates the need to shut down for cooling
  • Phase shift allows visual analysis of rotating/reciprocating objects
  • Easy adjust flash rate controller dial
  • Synchronous output enables strobe to drive other strobes
  • Easy tripod or permanent mounting with integral mounting thread
  • Internal, fast-charge rechargeable battery supply

Specifications:

  • Flashing Range: 40.0 – 12,500 fpm (flashes per minute)
  • Accuracy: ±0.02 % of reading
  • Resolution: 0.1 fpm: 40.0 – 4,999.9 fpm; 0.2 fpm: 5,000 – 7,999.9 fpm; 0.5 fpm: 8,000.0 – 9,999.5 fpm; 1 fpm: 10,000 – 12,5000 fpm
  • Phase Shift: Use +/- push buttons (360° in 6 seconds)
  • Display Update Time: Ext. mode: varies with flashing rate
  • Output Signal: NPN open collector (24 VDC max., 50 mA), 150 μsec typical
  • Rate Multiplier/Divider: Multiply by 2, divide by 2
  • External Trigger Input Signal: a) 12 – 24 VDC thru a 3-wire NPN output sensor (requires external power; b) 12 VDC thru a 2-wire proximity sensor (leakage current 1 mA max., load current 8 mA min.); c) Switch or relay contact
  • Display: 5 digits, 0.3” (8 mm) high, LED
  • Flashtube Power/Life: Xenon, 10 W max. (100 million flashes)
  • Flash Duration: 10 to 15 μs automatically adjusts with flash rate
  • Lux Rating: 8” (20 cm) Distance = 5500 lx @ 1500 fpm, 8400 lx @ 6000 fpm with 4.5″ (110 mm) irradiation diameter.; 20” (50 cm) Distance = 1650 lx @ 1500 fpm, 2200 lx @ 6000 fpm with 7″ (178 mm) irradiation diameter.
  • Low Battery Indicator: Flashing LED
  • Battery Life: 1 – 2 hours depending on the flash rate
  • Power Requirement: 100 to 240 VAC; 50/60 Hz
  • Operating Temperature: 32° – 104°F ( 0 – 40°C )
  • Dimensions: 7.28” L x 4.72” W x 4.72” H (185 mm x 120 mm x 120 mm)
  • Product Weight: 2.75 lbs (1.25 kg)
  • Package Weight: 4.45 lbs (2.02 kg)
  • Warranty: 2-Year

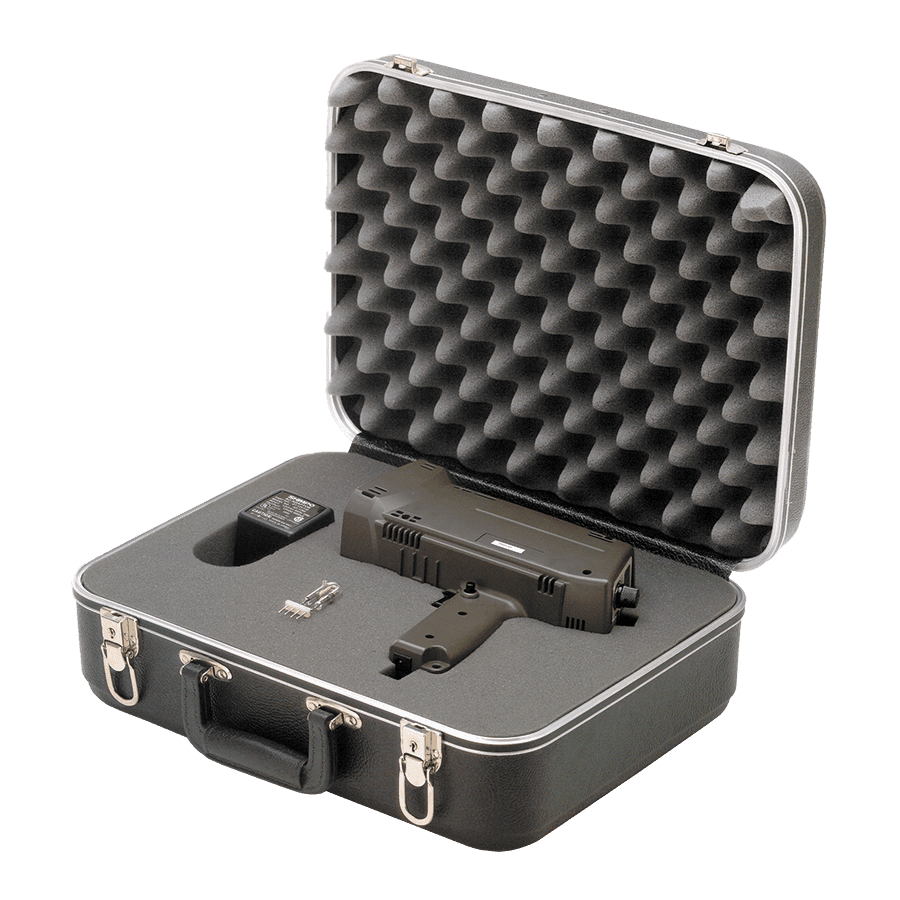

  • Included Accessories: Power Adapter, Spare Flash Tube, Carrying Case
SKU: HC-DT725-K Category:
Print Friendly, PDF & Email

Additional information

Weight 6 lbs
Dimensions 13 × 10 × 10 in
