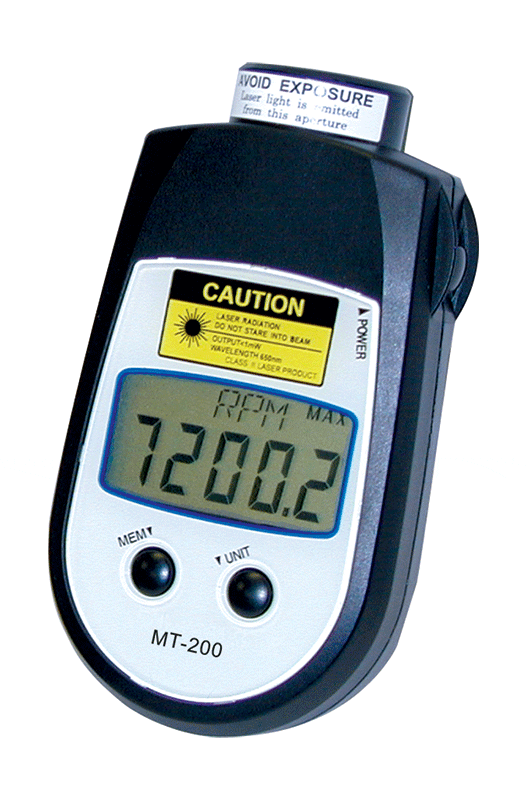

MT-200 Combination Contact/Non-Contact Pocket Tachometer

$205.00

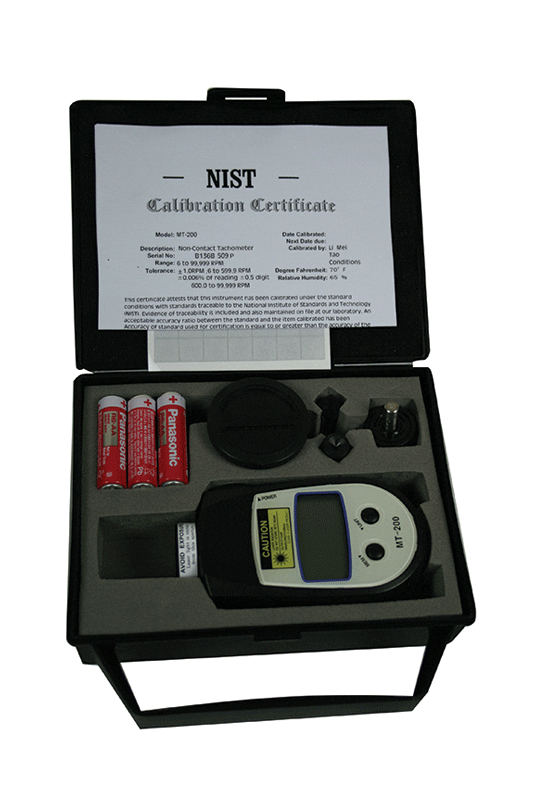

The MT-200 Combination Contact/Non-Contact Pocket Tachometer with microprocessor technology possesses the precision of the standard SHIMPO Tachometer line, yet within a compact, pocket-style enclosure. These battery-operated tachometers feature the same rugged, high-quality components that have made SHIMPO tachometers the benchmark in the industry. The MT-200 provides users with the capabilities of measuring and recording speeds of rotational, linear and surface plus total length in both contact or non-contact modes. The user-friendly, value-packed units feature memory storage; quick selection unit’s button; length functions; retrieval of last, maximum and minimum values; plus each unit comes standard with a free N.I.S.T. calibration certificate. Each unit ships in a protective carrying case which includes a cone adapter, funnel adapter and 6” circumference wheel.

  • Multiple measurement types in both contact or non-contact modes: total revolutions (rev); revolutions per minute (rpm); surface speed: m/min, y/min, ft/min, in/min; and length: meters, yards, feet and inches
  • Non-contact measurements up to 23.6” (60 cm) away
  • Compact, pocket-size design fits easily in the palm of the hand
  • Memory automatically stores minimum, maximum and last. Plus, 10 user stored readings of the process can also be recorded
  • Long battery-life enables continuous operation
  • Instant conversion of units
  • Low battery and over range indication
  • NIST calibration certificate included with every unit

Specifications:

  • Non-Contact/Contact Range: RPM Non-Contact: 6.0 – 99,999 RPM; RPM Contact: 6.0 – 25,000 RPM; Revolutions (total) Non-Contact & Contact: 1 – 99,999
  • Wheel Range: Speed Using 6″ Cir. Wheel: Meters/Min: 0.1 – 3809.8; Yards/Min: 1.0 – 4166.4; Inch/Min: 36 – 99,999; Feet/Min: 3.0 – 12,499; Length Using 6″ Cir. Wheel: Meters: 0.2 – 99,999; Yards: 0.2 – 99,999; Feet: 0.5 – 99,999
  • Accuracy: Revolution: 6.0 – 599.9 RPM: ±1 RPM; 600 – 99,999 RPM: ±0.006% ±0.5 digit; Surface Speed, Length: ±0.4% ±1 digit
  • Display: 5 digit 0.47″ (12 mm) high LCD
  • Memory: Readings are stored in memory and retained for 5 minutes (last, max., min., and 10 user logged measurements)
  • Detection: Laser diode
  • Update Time: 1 second (typical)
  • Over Range Indicator: Flashing numerals
  • Operating Temperature: 32° – 113°F (0° – 45°C)
  • Power Requirement: 3 x AA 1.5V batteries
  • Construction: ABS resin housing
  • Unit Weight: 0.35 lb (160 g)
  • Unit Dimensions: 4.55″ x 2.52″ x 1.24″ (115.5 mm x 64 mm x 31.5 mm)
  • Warranty: 2 years
  • Included Accessories: 3 x AA batteries, cone adapter, funnel adapter, contact adapter, master wheel (6″ cir.), reflective tape, carrying case, NIST certificate

Out of stock

SKU: HC-MT200 Category:
Print Friendly, PDF & Email

Additional information

Weight .9 lbs
Dimensions 4.55 × 2.52 × 1.24 in
