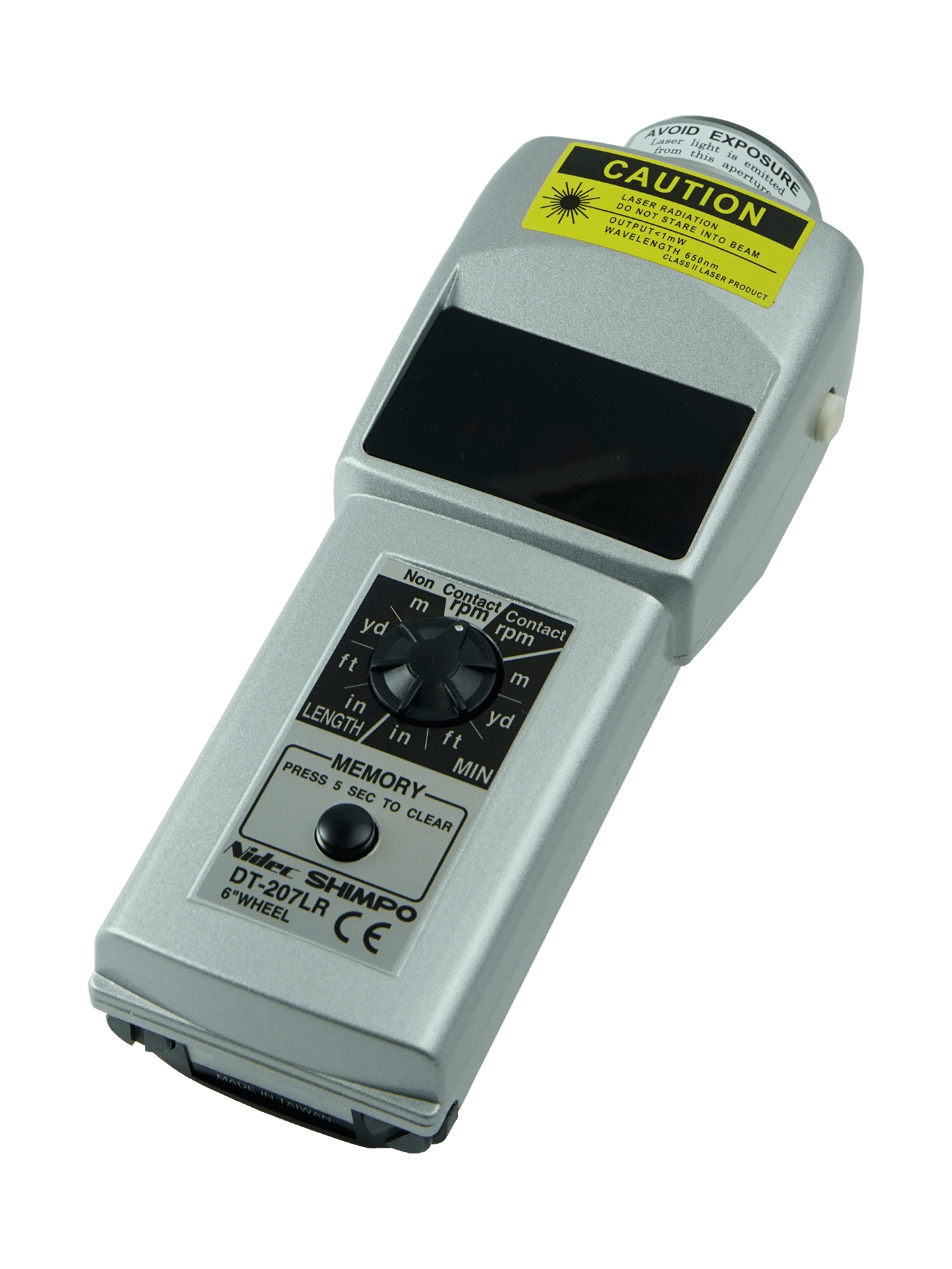

DT-207LR Non-contact/Contact Laser Tachometer (w/LED)

$305.00

The laser-enabled DT-207LR has precise RPM measurement up to 20 feet. The Series DT-207LR digital tachometers incorporate laser technology yet retain our hallmark rugged construction and reliable quality components. Units offer incredible value and versatility as they can operate in non-contact and contact applications. These instruments feature a field-upgrade-able contact adapter for linear rate measure, conveniently allowing both non-contact and contact measurements. Incorporating the precise laser technology and user-friendly functions as the DT-207LR tachometer, the DT- 207LR-S12 provides an exceptional accuracy in measuring speed and length via its 12” wheel. The larger wheel rotates more slowly than a standard 6” wheel, enabling reliable and safe registration of high speeds.

All Series 207LR units come standard with a NIST traceable calibration certificate. We’re confident you’ll agree that these fine units are the most advanced handheld tachometers on the market.

Standard Accessories:

  • Reflective tape
  • 2 cone adapters
  • 1 funnel adapter
  • 1 3-1/2″ extension shaft
  • NIST certificate

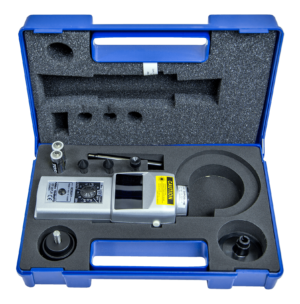

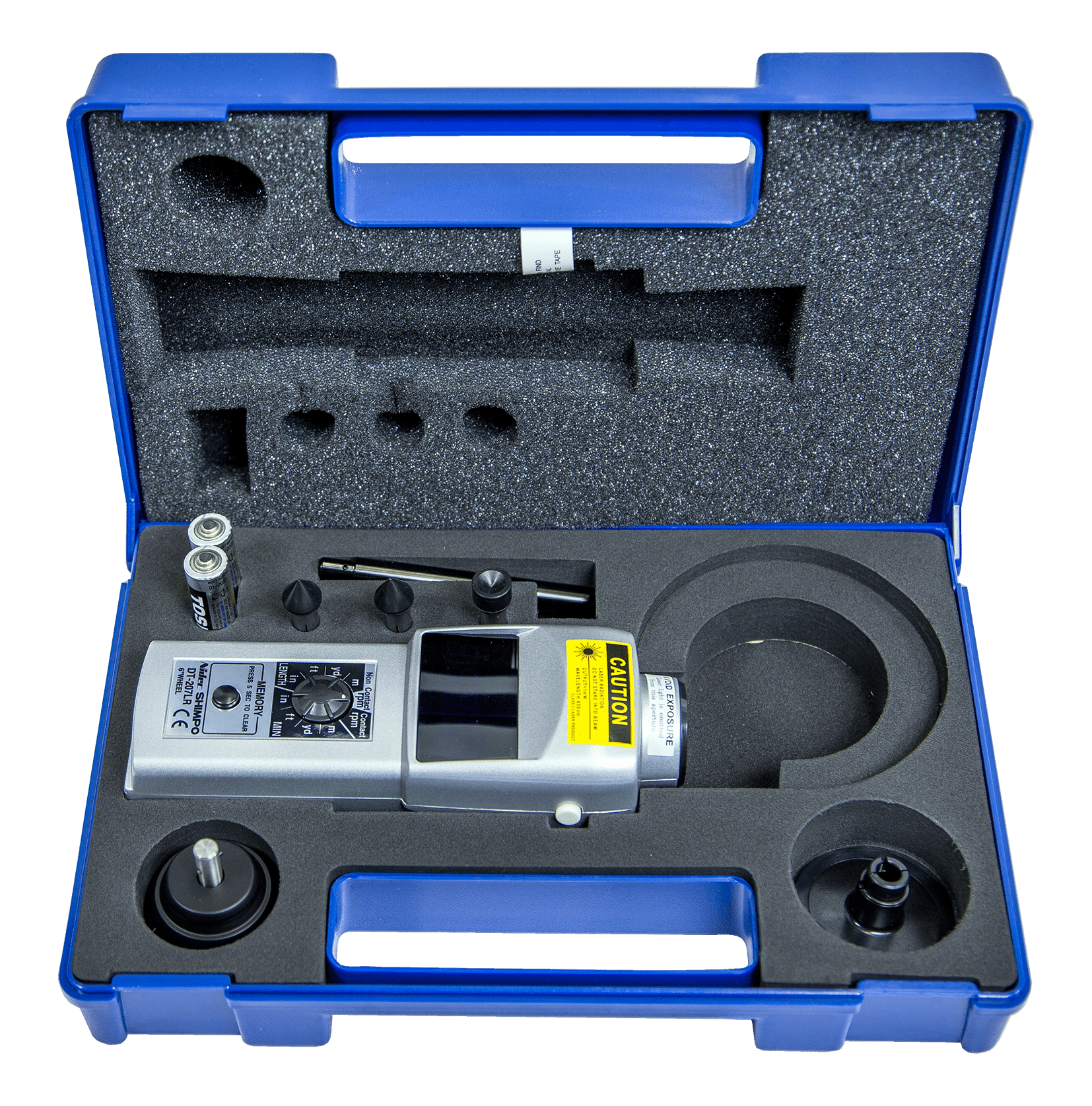

  • Carrying case with foam
  • 1 master wheel (6″ cir)

Specifications:

  • Measuring Range: 6 – 99,999 RPM
  • Accuracy: ±1 RPM: 6 – 8300 RPM; ±2 RPM: 8300 – 25,000 RPM; ±0.006% of reading ±1 digit (or 2 RPM max):25,000 – 99,999 RPM
  • Display: 5 digit 0.47″ (12 mm) high LED
  • Measuring Units: RPM (on contact using adapter, included); Rate: YPM, mPM, FPM, IPM; Length: YRD, m, ft, in. use 6″ cir. wheel with 200L adapter
  • Memory: 13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 extras measurements)
  • Display Update Time: 1 second (typical)
  • Detection: Laser Diode
  • System Control: Single-chip C-MOS microprocessor
  • Over Range Indicator: Flashing numerals
  • Voltage Requirement: 2 AA 1.5 V batteries
  • Low Battery Indicator: Flashing “LO BAT” display
  • Auto Power Shut-Off: Yes
  • Battery Life: 40 hrs. approx.
  • Operating Temperature Range: 32 – +113°F (0 – +45°C)
  • Construction: Die-cast aluminum housing
  • Warranty: 1 year

Includes

  • 6″ (152 mm) master linear wheel.
  • Adaptor for direct contact use.
  • Carry-case.
  • Extension shaft.
  • Funnel adaptor.
  • Laser tachometer.
  • Reflective tape.
  • Two (2) cone adaptors.

Features and Benefits
These laser tachometers incorporate the latest microprocessor and laser technology and offer:

  • Multi-mode capability measures RPM, mPM, YPM, FPM, IPM, and total meters, yards, feet, and inches.
  • LAST, MAX, MIN, 10 reading memory.
  • Single chip microprocessor ensures reliability and low maintenance.
  • Safely measures RPM (non-contact mode) from up to 14 feet (4.27m) away.
  • Long battery life (25 to 40 hours).
  • Rugged die-cast aluminum housing provides exceptional durability.
  • Extended measuring range (6 to 99,999 RPM) covers a wide range of applications.
  • Finest quality products from Shimpo® America.
  • Free N.I.S.T. certificate.
SKU: HC-DT207LR Category:
Print Friendly, PDF & Email

Additional information

Weight 2.04 lbs
Dimensions 11 × 7 × 3 in
