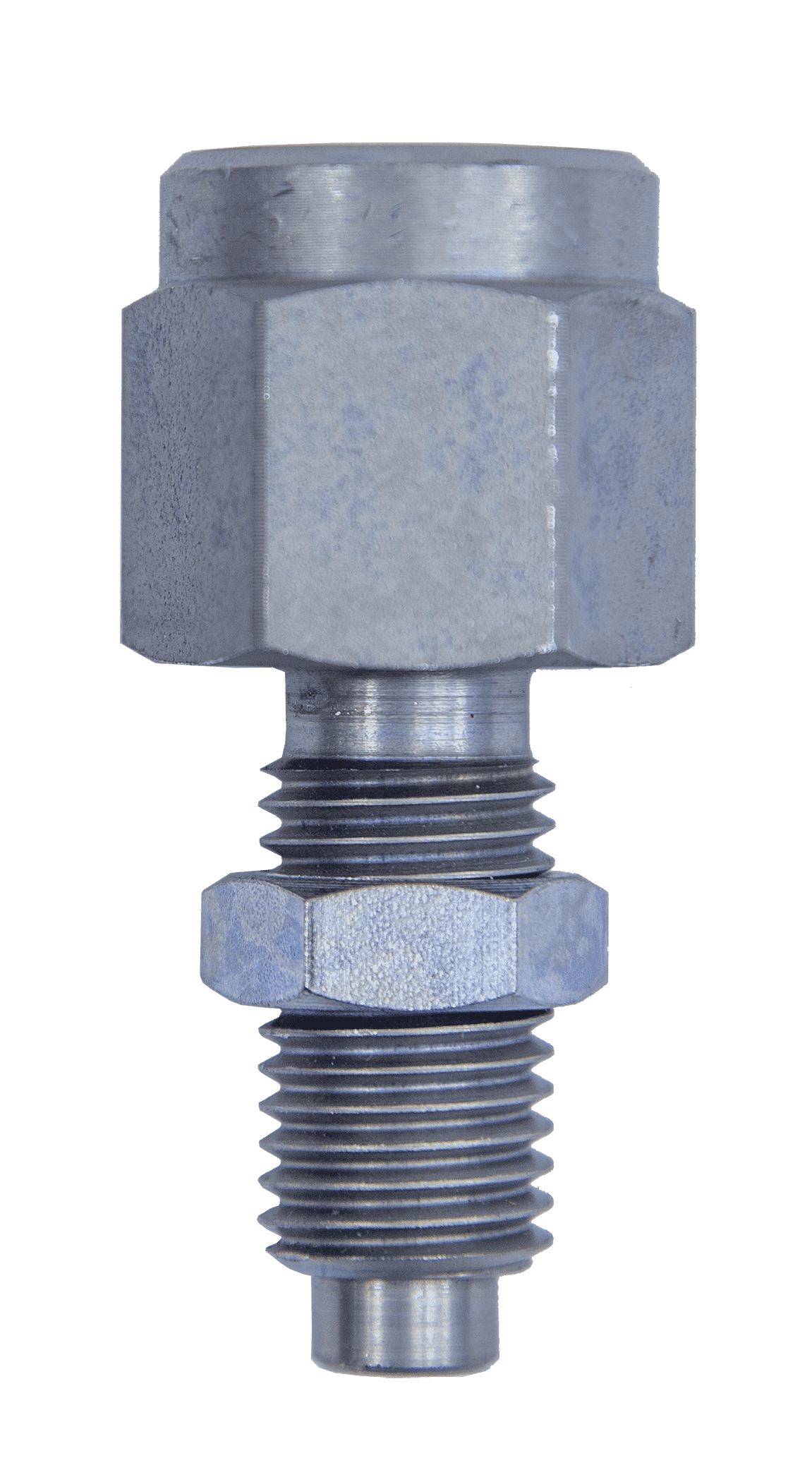

Hose Gauge Adapter, 1/2″ NPT

$38.47

The hose/gauge bulkhead adaptor makes it convenient for you to “solid mount” a pressure gauge to a console or bulkhead. The microbore hose assembly conveniently screws onto the bulkhead adaptor. The male bulkhead side has a M16x2 connection.

Specifications:

  • Connection: 1/2-14 NPT
  • Material: Steel
  • Maximum Working Pressure: 9137 PSI (630 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +212°F (-20 to +100°C)
  • Media: Suitable for hydraulic oils and other mineral-based fluids
SKU: HC-GAH-1/2NPT Category:
Print Friendly, PDF & Email

Additional information

Weight 0.3 lbs
Dimensions 3 × 1.25 × 1.25 in
Port Thread

1/2 NPT

Maximum Operating Pressure

9137 PSI (630 Bar)

Connect Under Pressure

Up to 5800 PSI (Up to 400 Bar)
