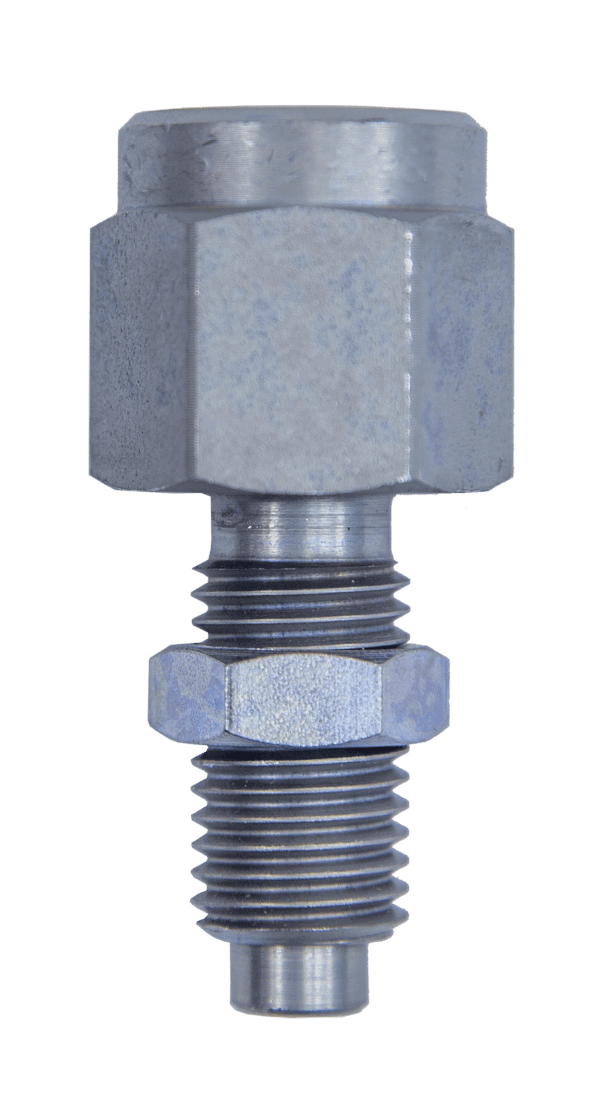

Hose Gauge Adapter, G1/2


The hose/gauge bulkhead adapter makes it convenient for you to “solid mount” a pressure gauge to a console or bulkhead. The microbore hose assembly conveniently screws onto the bulkhead adaptor. The male bulkhead side has an M16x2 connection.


  • Connection: G1/2 BSPP (1/2-19)
  • Material: Steel
  • Maximum Working Pressure: 9137 PSI (630 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +212°F (-20 to +100°C)
  • Media: Suitable for hydraulic oils and other mineral-based fluids
SKU: HC-GAH-G1/2 Category:
Print Friendly, PDF & Email

Additional information

Weight 0.15 lbs
Dimensions 2.313 × .875 × .875 in
Port Thread


Maximum Operating Pressure

9137 PSI (630 Bar)

Connect Under Pressure

Up to 5800 PSI (Up to 400 Bar)
