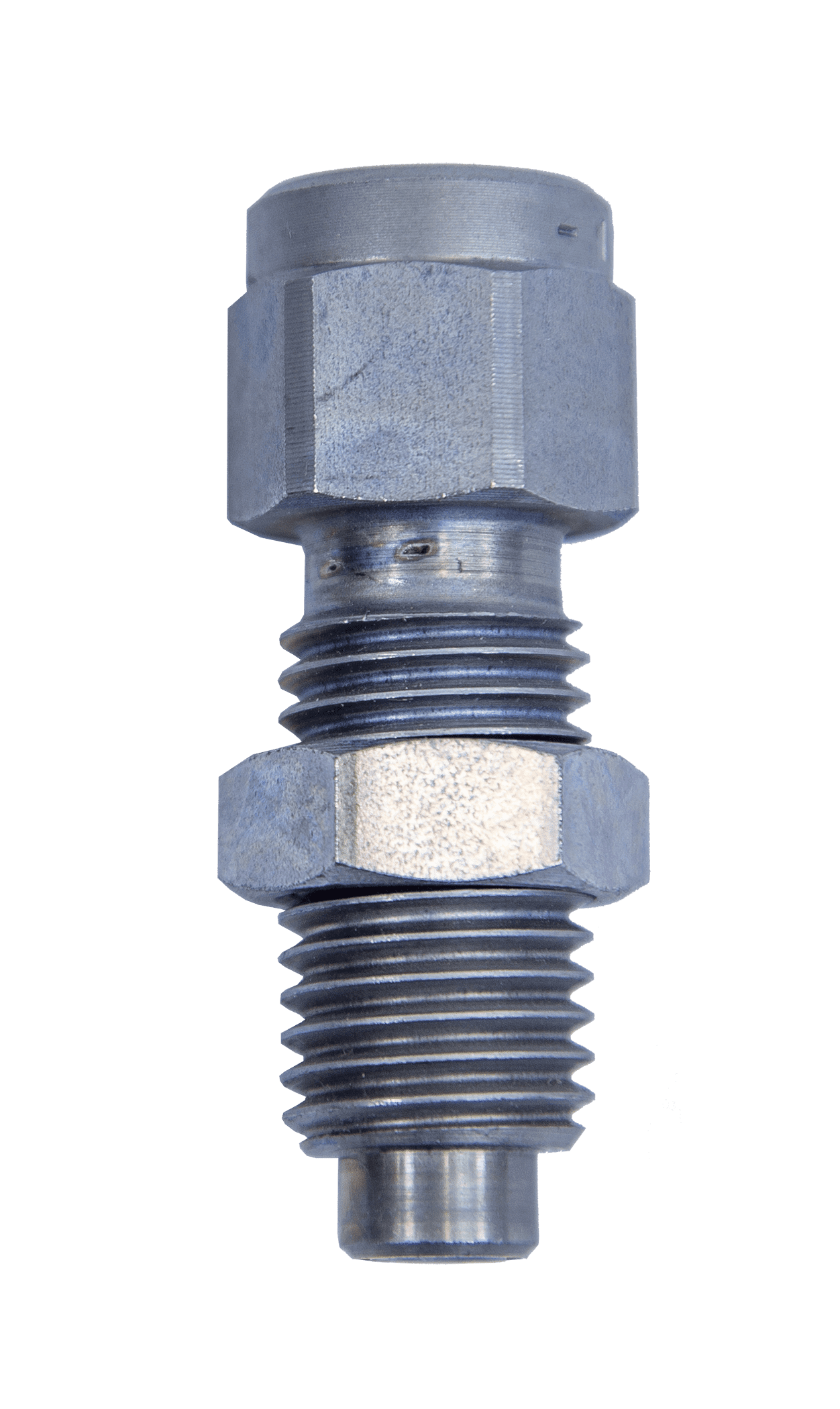

The hose/gauge bulkhead adaptor makes it convenient for you to “solid mount” a pressure gauge to a console or bulkhead. The microbore hose assembly conveniently screws onto the bulkhead adaptor. The male bulkhead side has an M16x2 connection.
Connection: G1/4 BSPP (1/4-19)
Maximum Working Pressure: 9137 PSI (630 bar)
Connect Under Pressure: 5800 PSI (400 bar)
Temperature Rating: -4 to +212°F (-20 to +100°C)
Media: Suitable for hydraulic oils and other mineral-based fluids
