Test Point Kit – Standard and International Connections (M16x2)

$658.75

The test point kit consists of male couplings designed for monitoring and control of pressure. The test point connection is M16x2.0. Advantages of using the M16x2 (Test 20) coupling are system testing at working pressure, leakproof connection before ball check is open, protective cap, and minimizes the introduction of contamination in the hydraulic system. The units can also be considered Minimess.

Use in conjunction with the direct gauge adapter.

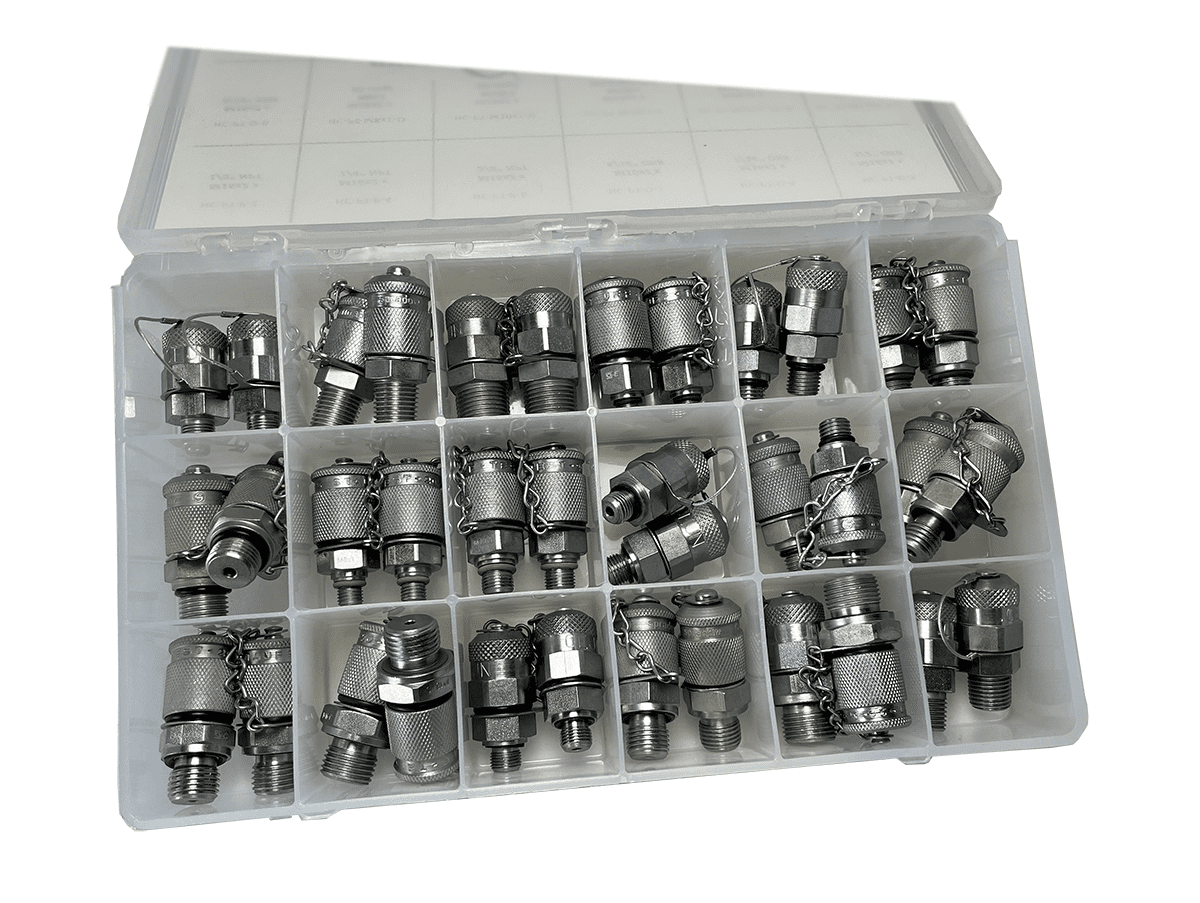

The kit includes:

  • (x2) Test Point (M16x2), 1/8″ NPT
  • (x2) Test Point (M16x2), 1/4″ NPT
  • (x2) Test Point (M16x2), 3/8″ NPT
  • (x2) Test Point (M16x2), 5/16″ ORB
  • (x2) Test Point (M16x2), 7/16″ ORB
  • (x2) Test Point (M16x2), 1/2″ ORB
  • (x2) Test Point (M16x2), 9/16″ ORB
  • (x2) Test Point (M16x2), M8x1 (O-ring)
  • (x2) Test Point (M16x2), M10x1 (O-ring)
  • (x2) Test Point (M16x2), M10x1 (Elastomeric Seal)
  • (x2) Test Point (M16x2), M10x1.25 (O-ring)
  • (x2) Test Point (M16x2), M12x1.5 (Elastomeric Seal)
  • (x2) Test Point (M16x2), M14x1.5 (Elastomeric Seal)
  • (x2) Test Point (M16x2), M16x1.5 (Elastomeric Seal)
  • (x2) Test Point (M16x2), G1/8 BSPP (Elastomeric Seal)
  • (x2) Test Point (M16x2), G1/4 BSPP (Elastomeric Seal)
  • (x2) Test Point (M16x2), G3/8 BSPP (Elastomeric Seal)
  • (x2) Test Point (M16x2), R1/4 BSPT

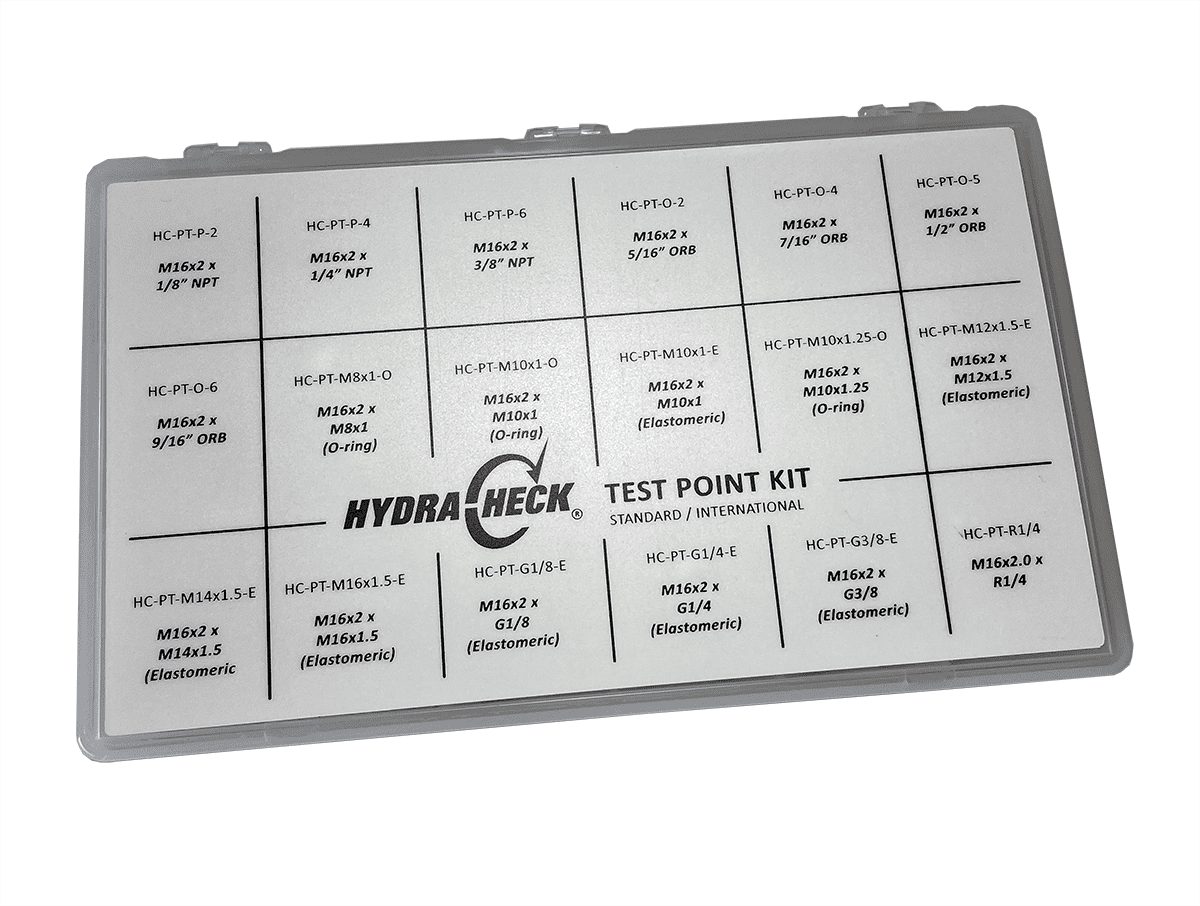

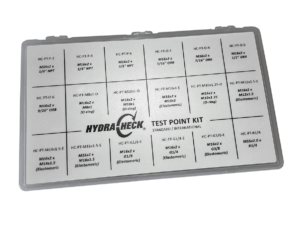

  • 18-Compartment Box – Suitable for product storage and protection

Specifications:

  • Material: Steel
  • Seal: Viton
  • Maximum Working Pressure: 9000 PSI (600 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +212°F (-20 to +100°C)
  • Media: Suitable for hydraulic oils and other mineral-based fluid
SKU: HC-PT-K-STD/INTL Category:

Additional information

Weight 6 lbs
Dimensions 11 × 6.5 × 2 in
Connection Type

Male NPT, ORB, Metric, BSPP, BSPT

Material

Steel, Zinc/Nickel-Plated
