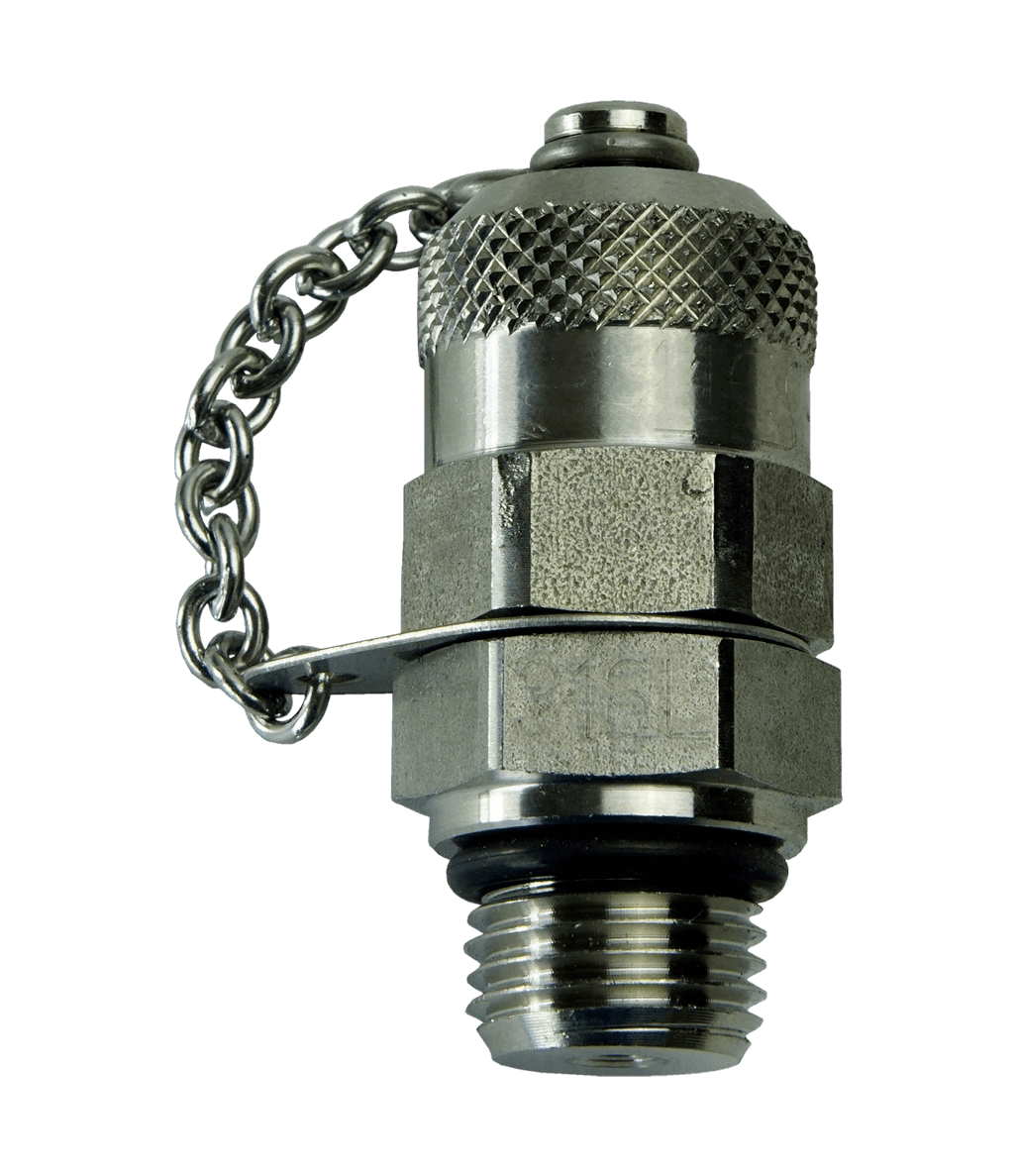

Test Point (M16X2), 316 Stainless Steel, 7/16″ ORB


The stainless steel test point is designed for monitoring and control of pressure. The test connection of the test point is M16x2 (Test 20). The advantages of using the Test 20 coupling are system testing at working pressure, leakproof connection before the ball check is open, protective cap, and minimizes the introduction of contamination in the hydraulic system.

Use in conjunction with the direct gauge adapter.


  • Material: 316 stainless steel
  • Seal: Viton
  • Maximum Working Pressure: 9137 PSI (630 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +392°F (-20 to +200°C)
  • Media: Suitable for hydraulic oils and other mineral-based fluids
SKU: HC-PT-O-4-316SS Category:
Print Friendly, PDF & Email

Additional information

Weight 0.1 lbs
Dimensions 2 × 0.875 × 0.875 in
Thread Size

7/16" ORB

Nominal Size



316 Stainless Steel
