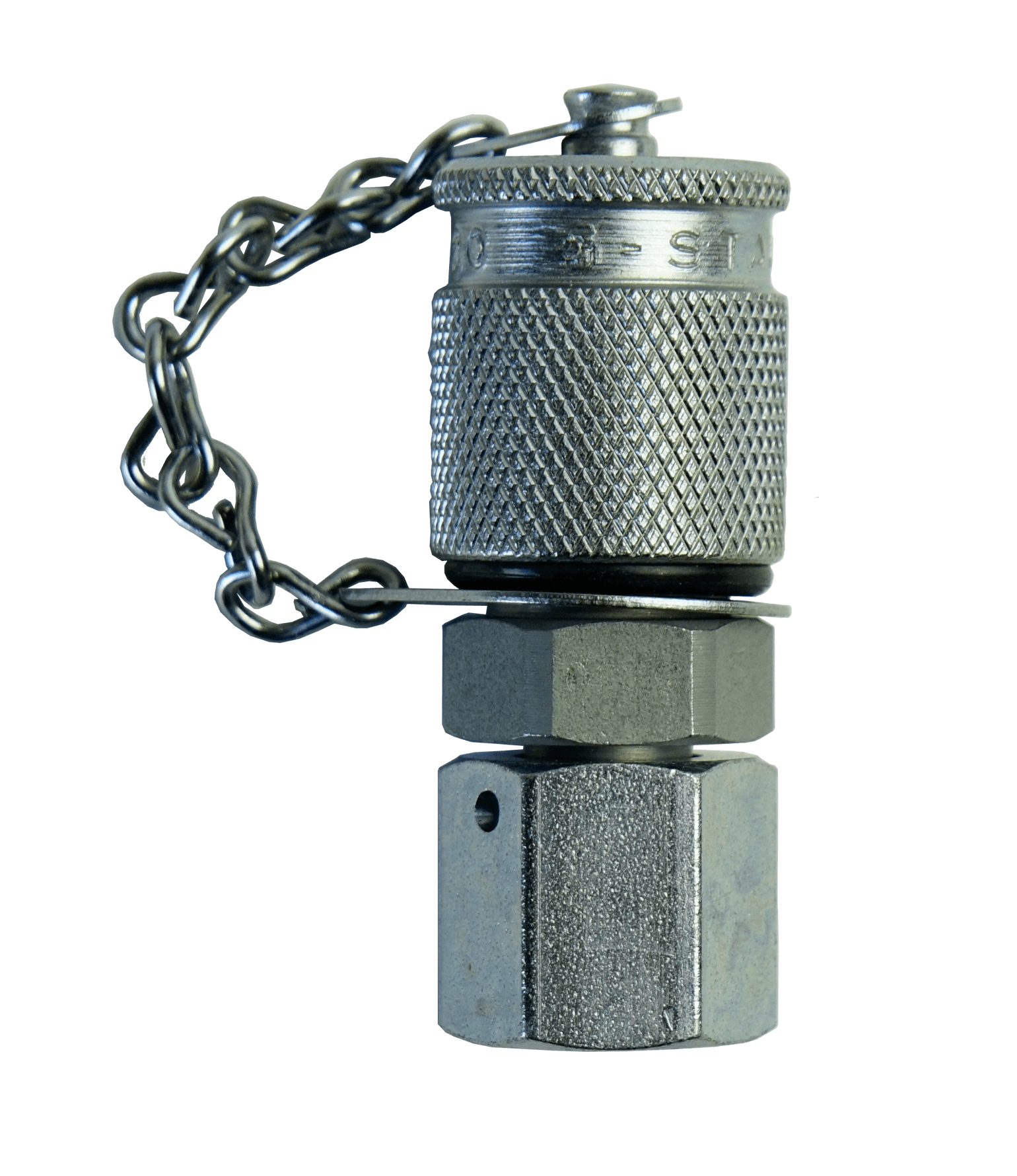

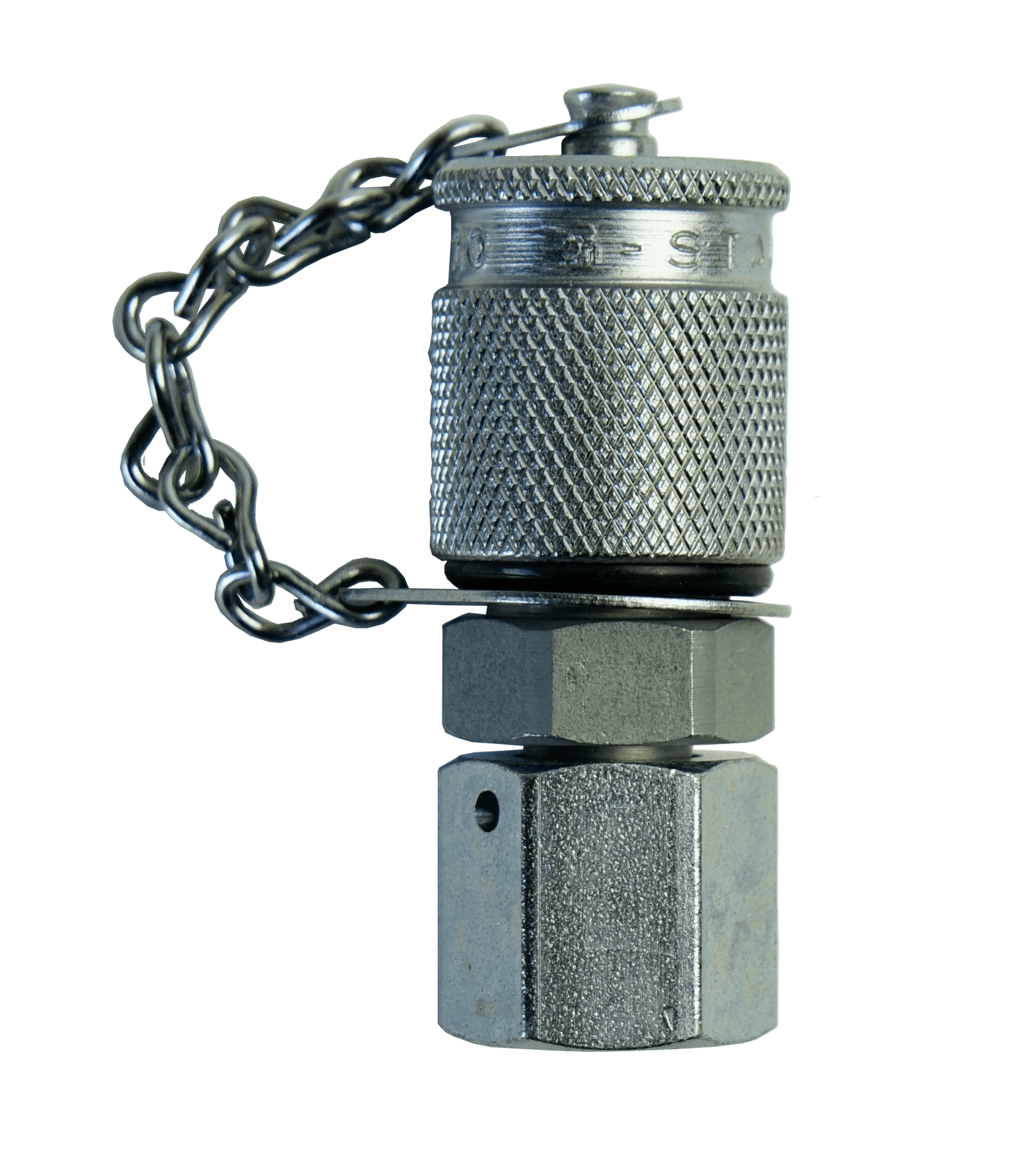

Test Point (M16x2), #4 Female JIC Swivel

$26.09

Male coupling designed for monitoring and control of pressure. Test point connection is M16x2.0. Advantages to using the Stauff coupling are system testing at working pressure, leakproof before ball check is open, protective cap, and minimizes introduction of contamination in hydraulic system.

Use in conjunction with the direct gauge adapter.

Specifications:

  • Material: Steel
  • Seal: Viton
  • Maximum Working Pressure: 9000 PSI (600 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +212°F (-20 to +100°C)
  • Media: Suitable for hydraulic oils and other mineral based fluids
SKU: HC-PT-JIC-4-FS Category:
Print Friendly, PDF & Email

Additional information

Weight 0.2 lbs
Dimensions 2.25 × .875 × .875 in
Thread Size

7/16-20

Connection Type

Female JIC

Nominal Size

04

Material

Steel, Zinc/Nickel-Plated

Seal Type

37 Degree
