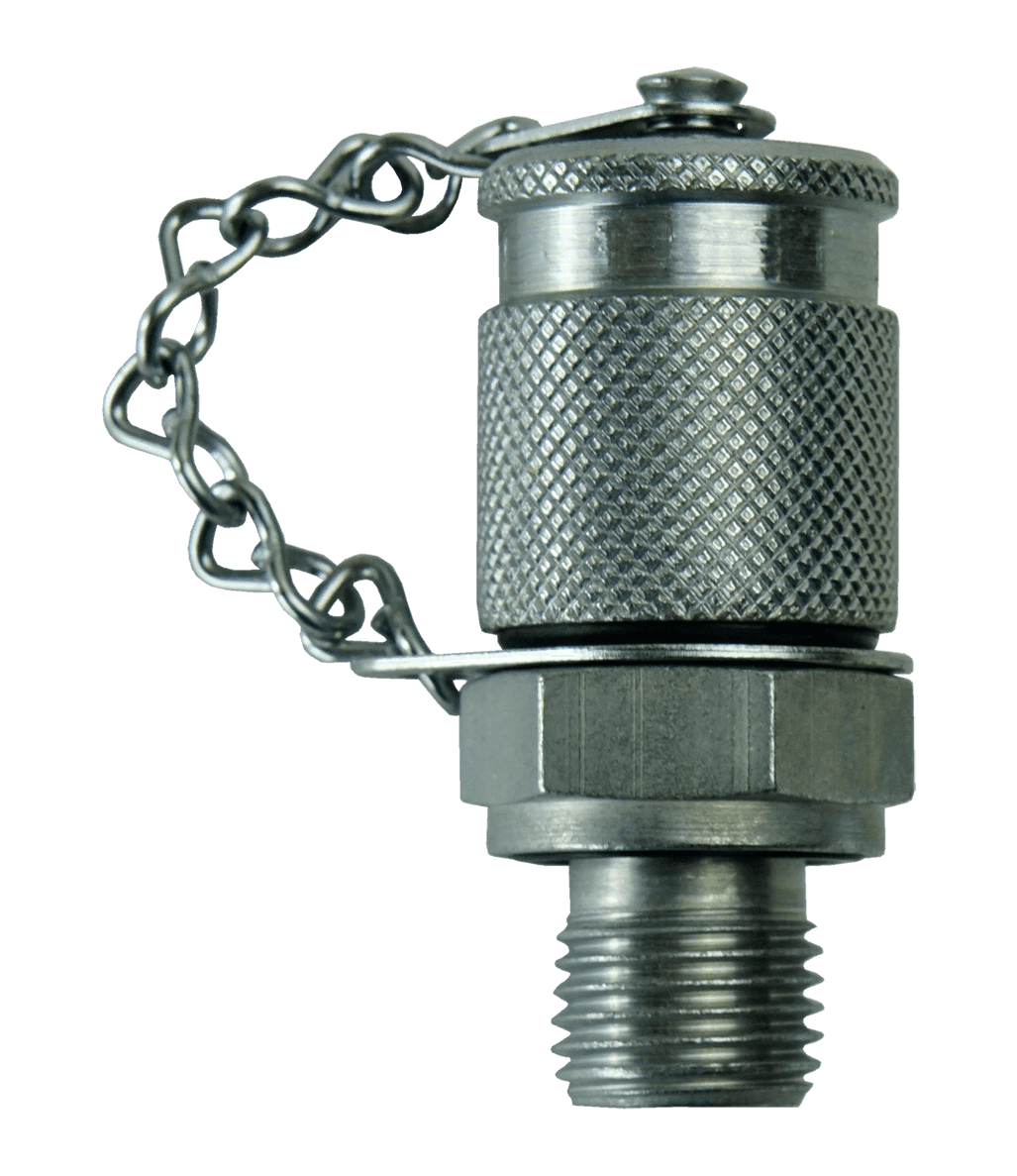

Test Point (M16x2), G1/2 BSPP, Elastomeric Ring


Male coupling designed for monitoring and control of pressure. Test point connection is M16x2.0. Advantages of using the Test 20 coupling are system testing at working pressure, leakproof connection before ball check is open, protective cap, and minimizes the introduction of contamination in the hydraulic system.

Use in conjunction with the direct gauge adapter.


  • Material: Steel
  • Seal: Viton
  • Maximum Working Pressure: 9000 PSI (600 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +212°F (-20 to +100°C)
  • Media: Suitable for hydraulic oils and other mineral-based fluids
SKU: HC-PT-G1/2-E Category:
Print Friendly, PDF & Email

Additional information

Weight 0.2 lbs
Dimensions 2 × .875 × .875 in
Thread Size


Connection Type


Nominal Size



Steel, Zinc/Nickel-Plated

Seal Type

Elastomeric Seal
