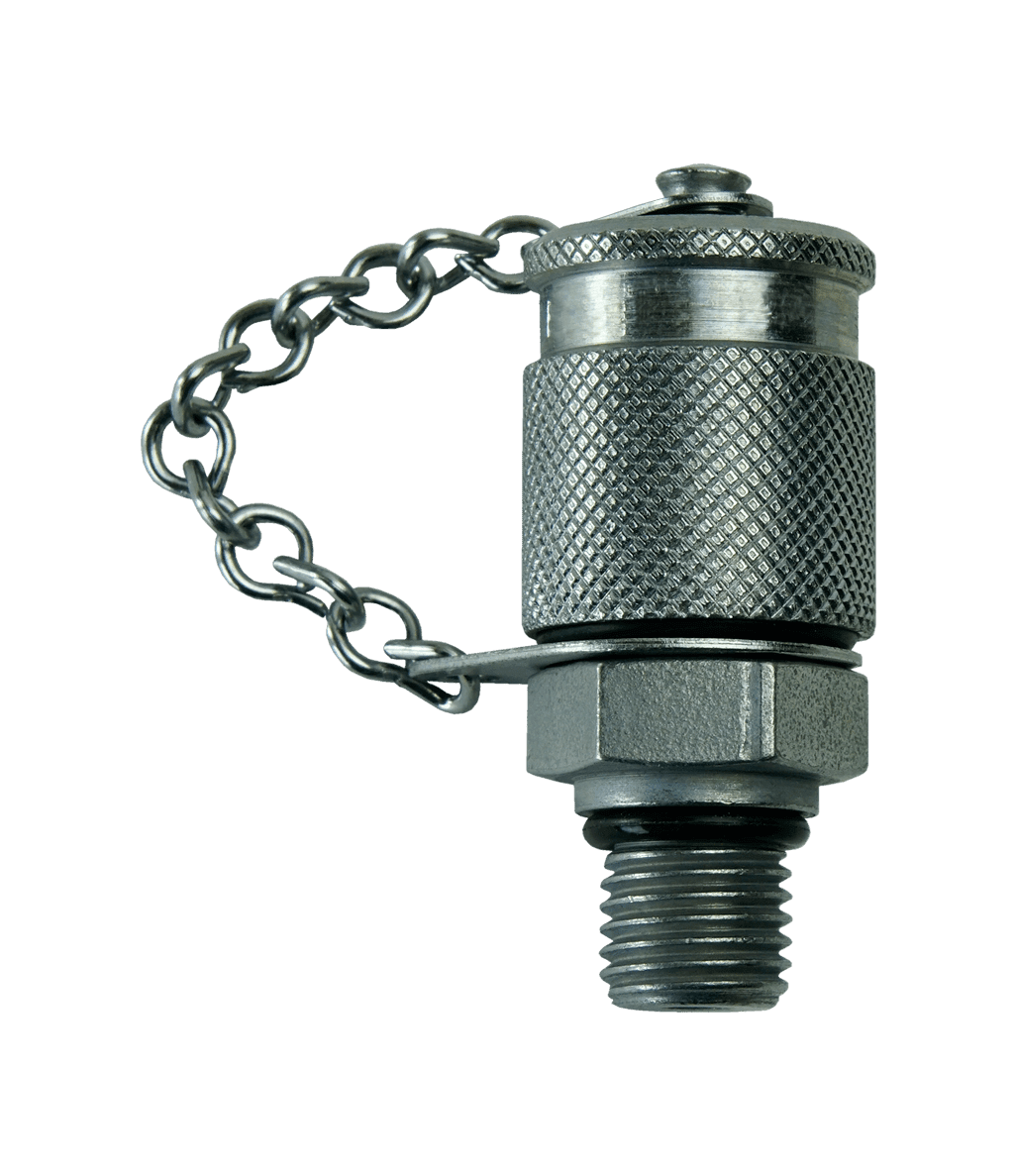

Test Point (M16x2), M10x1, O-ring


Male coupling designed for monitoring and control of pressure. The test point connection is M16x2.0. The advantages of using the Test 20 (Minimess) test point are system testing at working pressure, leakproof before ball check is open, protective cap, and minimizes the introduction of contamination in the hydraulic system.

Use in conjunction with the direct gauge adapter.


  • Material: Steel or Stainless steel options
  • Seal: Viton
  • Maximum Working Pressure: 9137 PSI (630 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +392°F (-20 to +200°C)
  • Media: Suitable for hydraulic oils and other mineral-based fluids
SKU: HC-PT-M10x1-O Category:
Print Friendly, PDF & Email

Additional information

Weight 0.1 lbs
Dimensions 2 × .875 × .875 in
Thread Size


Connection Type

Male Metric

Nominal Size



Steel, Zinc/Nickel-Plated

Seal Type
