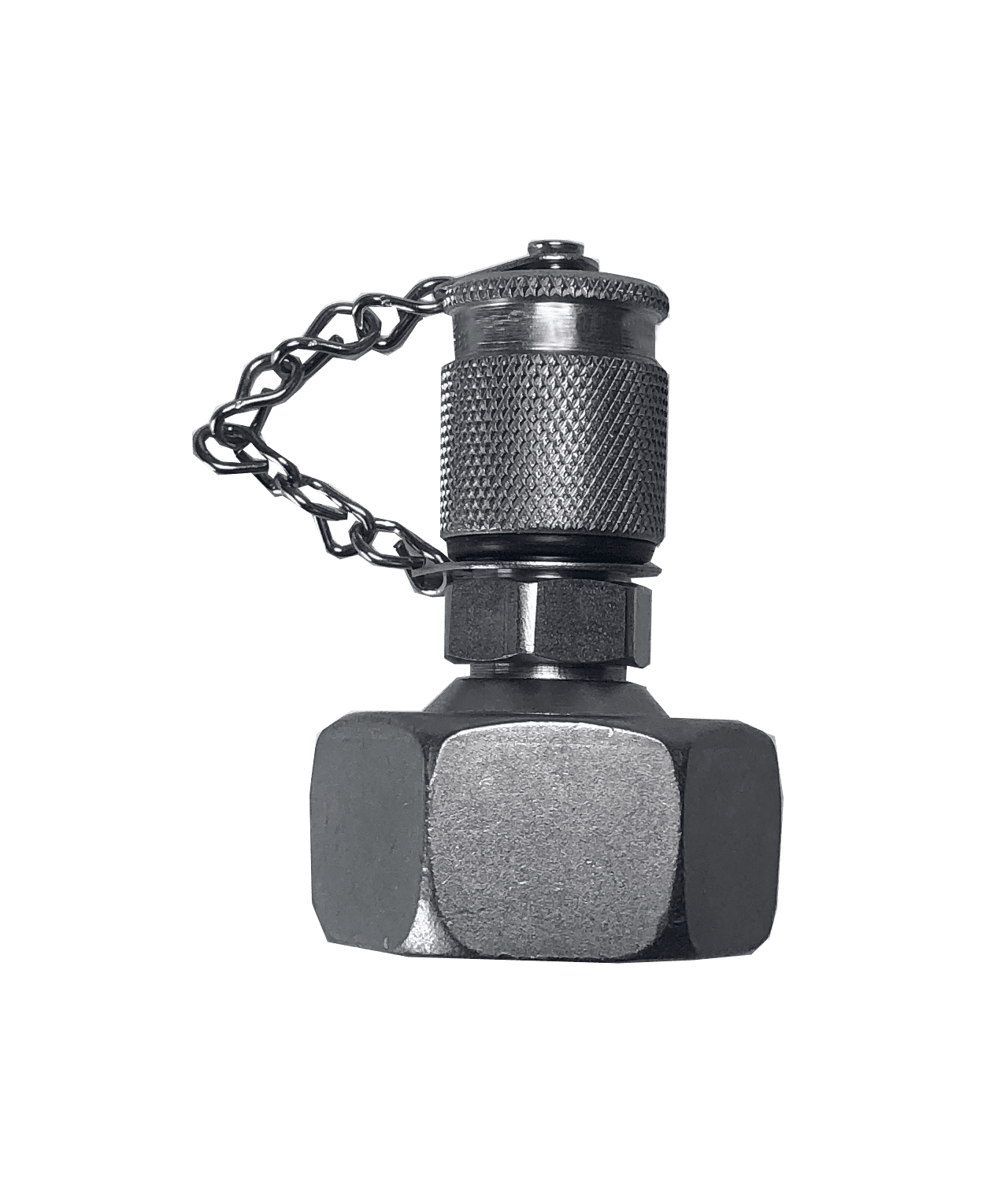

Test Point (M16x2) with 24° Taper/O-ring (DKO), M18x1.5 (Light Series)

$53.41

Male coupling is designed for monitoring and control of pressure. The test point connection is M16x2.0. Advantages to using the Test 20 coupling are system testing at working pressure, leak-proof before ball check is open, protective cap, and minimizes the introduction of contamination in a hydraulic system.

Use in conjunction with the direct gauge adapter.

Specifications:

  • Material: Steel
  • Seal: Viton
  • Maximum Working Pressure: 4568 PSI (315 bar)
  • Temperature Rating: -4 to +392°F (-20 to +200°C)
  • Media: Suitable for hydraulic oils and other mineral-based fluids
SKU: HC-PT-DKO-12L Category:
Print Friendly, PDF & Email

Additional information

Weight 0.1 lbs
Dimensions 2 × .875 × .875 in
Type

DKO/DIN

Thread Size

M18X1.5

Series

Light

Pressure Rating

4568 PSI (315 bar)

Material

Steel, Zinc/Nickel-Plated

Seal Type

O-Ring
