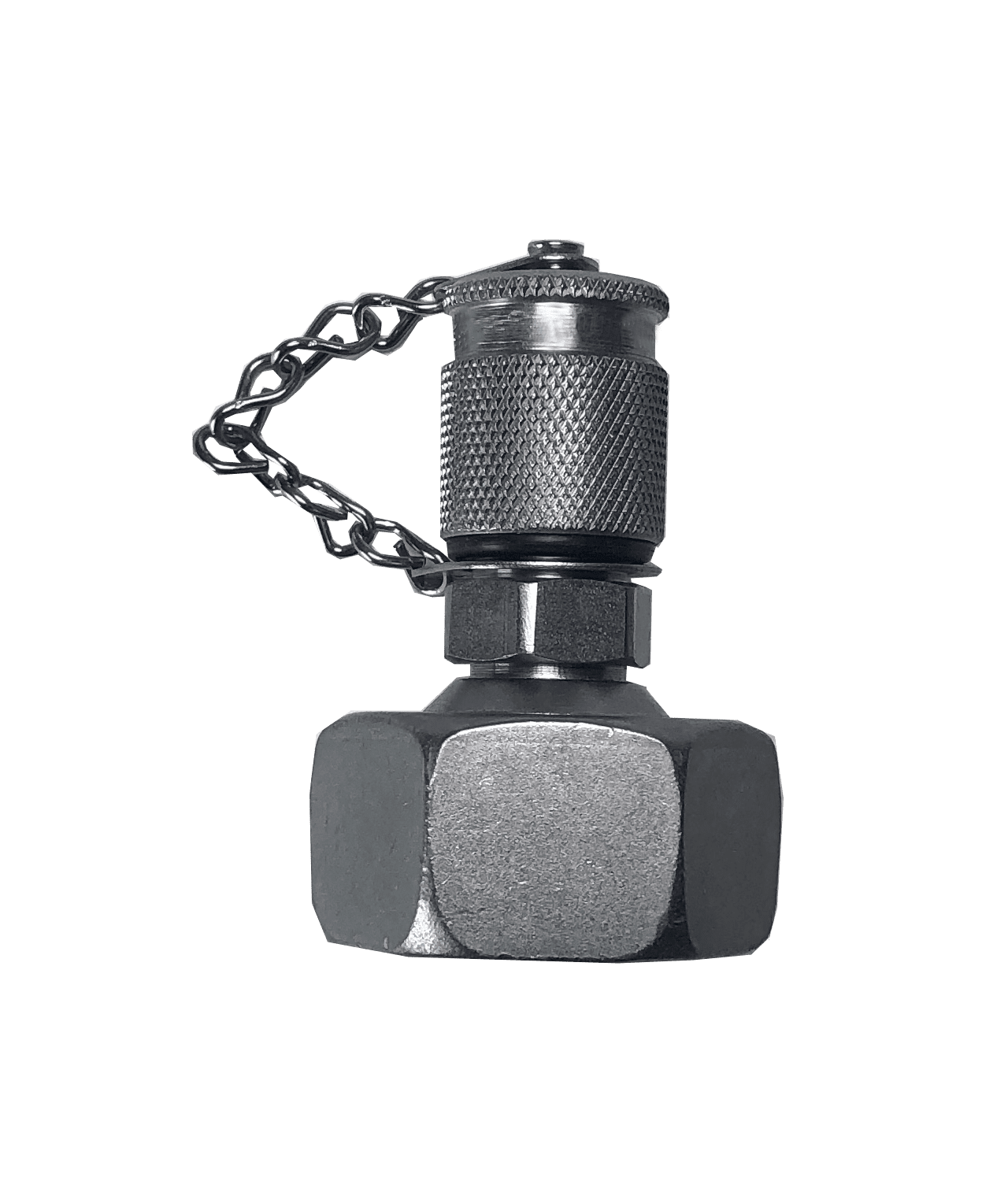

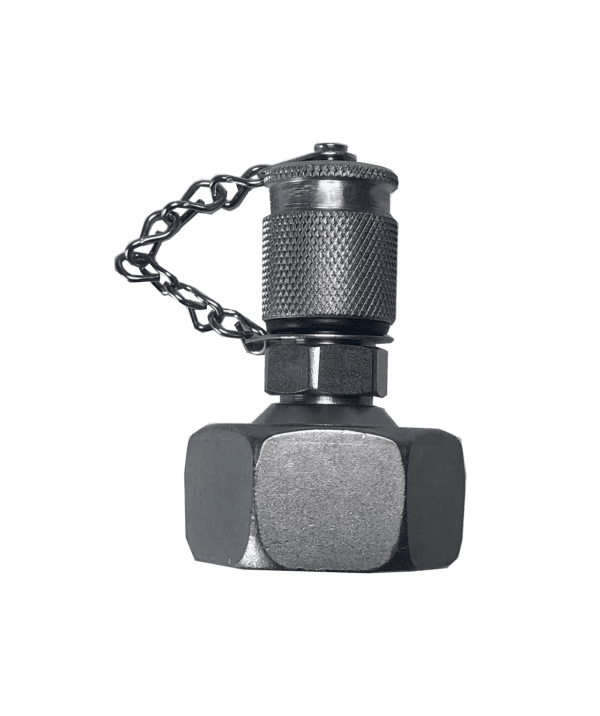

Test Point (M16x2) with 24° Taper/O-ring (DKO/DIN), M20x1.5 (Heavy Series)

$54.54

The test point (Minimess/Test 20) is designed for monitoring and control of pressure. The test point connection is M16x2.0. The test point comes with an M20x1.5 female swivel DIN connection. The advantages to using the Test 20 coupling are system testing at working pressure, leak-proof before the ball check is open, protective cap, and minimizes the introduction of contamination in a hydraulic system.

Use in conjunction with the direct gauge adapter.

Specifications:

  • Connection: 12S, M20x1.5 (DIN 2353)
  • Material: Steel
  • Seal: Viton
  • Maximum Working Pressure:9137 PSI (630 bar)
  • Temperature Rating: -4 to +392°F (-20 to +200°C)
  • Media: Suitable for hydraulic oils and other mineral-based fluids
SKU: HC-PT-DKO-12S Category:
Print Friendly, PDF & Email

Additional information

Weight 0.2 lbs
Dimensions 2 × .875 × .875 in
Type

DKO/DIN

Thread Size

M20X1.5

Series

Heavy

Pressure Rating

9137 PSI (630 bar)

Material

Steel, Zinc/Nickel-Plated

Seal Type

O-Ring
