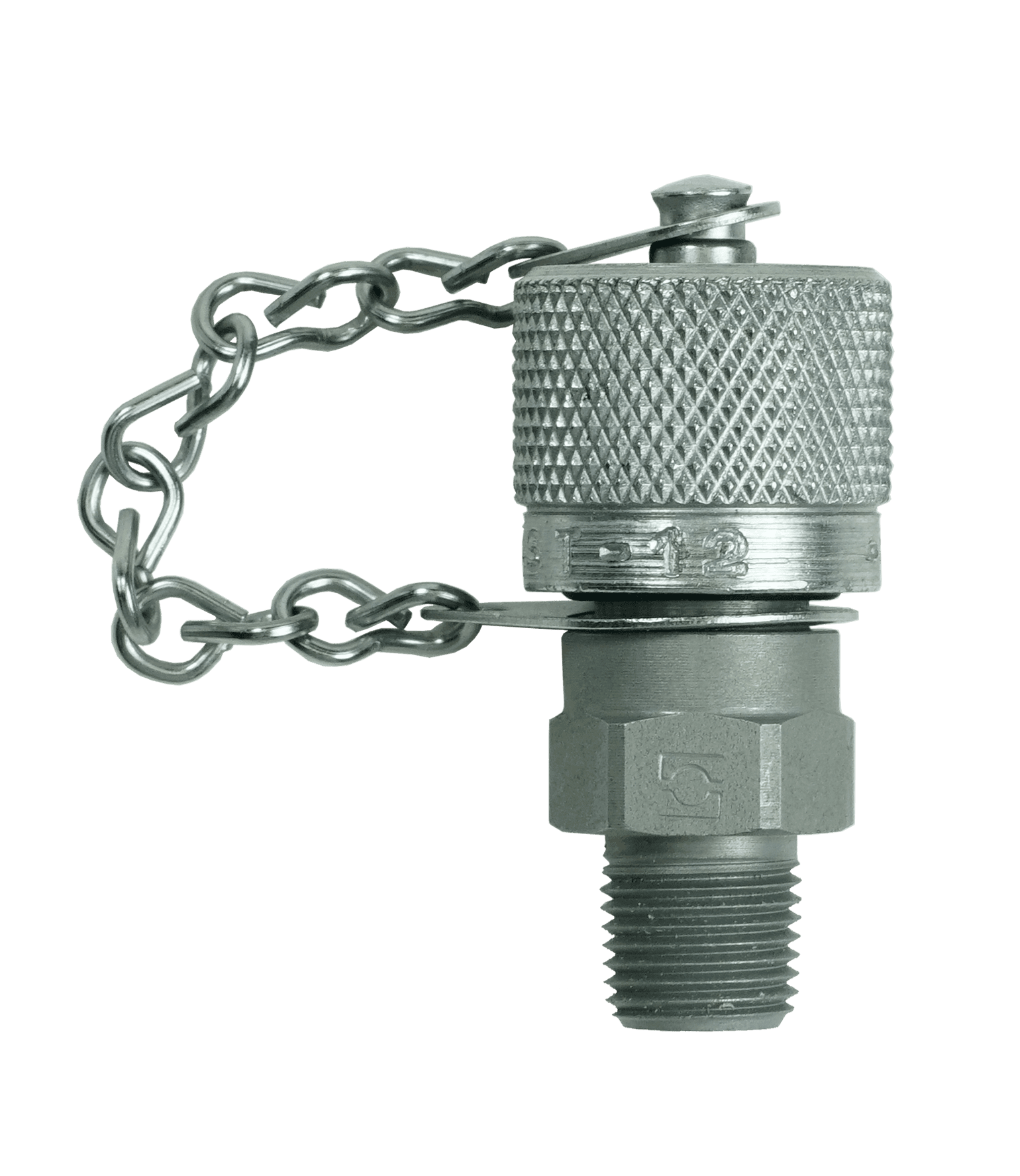

Test Point (S12.65×1.5), 1/4″ NPT

$27.83

Male coupling designed for monitoring and control of pressure. Test point connection is S12.65×1.5. Advantages to using the Test 12 coupling are system testing at working pressure, leakproof connection before the piston valve is open, protective cap, and minimizes the introduction of contamination in the hydraulic system.

Use in conjunction with the direct gauge adapter.

Specifications:

  • Material: Steel
  • Seal: Viton
  • Maximum Working Pressure: 9137 PSI (630 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +392°F (-20 to +200°C)
  • Media: Suitable for hydraulic oils and other mineral-based fluids
SKU: HC-PT12-P-4 Category:
Print Friendly, PDF & Email

Additional information

Weight 0.1 lbs
Dimensions 2 × .875 × .875 in
Type

NPT

Thread Size

1/4"

Nominal Size

04

Material

Steel, Zinc/Nickel-Plated

Seal Type

Sealant Needed
