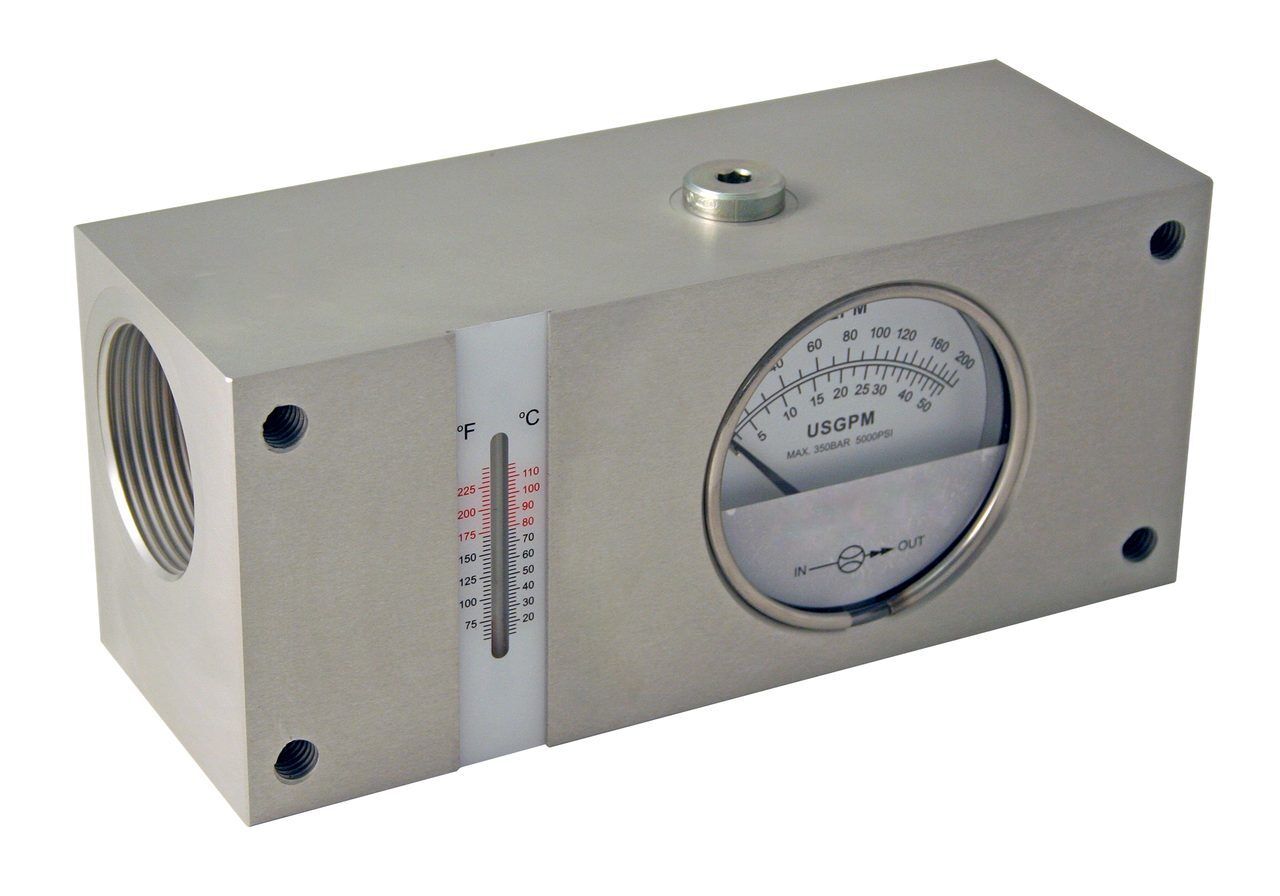

Inline Flow Indicator With Temperature Sensor, FI1500 Series, Up to 100 GPM


Flow Indicators are designed for continuous monitoring or intermittent use commissioning and servicing hydraulic systems up to 5000 PSI, 345 bar.

The large clear 63mm diameter dial ensures that quick checks can be made to determine pump performance and the setting of flow control valves. They can be used on mobile and industrial hydraulic circuits. Also, lubrication and coolant systems using oil.

These direct-acting flow indicators can be installed in hazardous areas or on applications where no power is available. The flow indicator design ensures good reliability and minimizes the effects of contamination.

The flow indicator consists of a sharp-edged orifice and tapered metering piston.

The piston movement is directly proportional to flow rate and the sharp edge orifice minimizes the effects of viscosity. The piston is magnetically coupled to the rotary pointer assembly which registers on a clear 2 1/2” (63 mm) scale displayed in US GPM and LPM.

The FI1500 flow indicators should not be installed in circuits where the flow is reversed.


FLOW: Up to 100 GPM (400 LPM)
PRESSURE: 5000 PSI (345 bar)
TEMPERATURE: 14 to 122°F (-10 to 50°C)
ACCURACY: ±4% Full Scale
BUILT-IN: Thermometer
DIRECT reading
HORIZONTAL or vertical mounting
LARGE clear dial
LOW cost rugged design
PRESSURE gauge port, 1/4″ NPT
