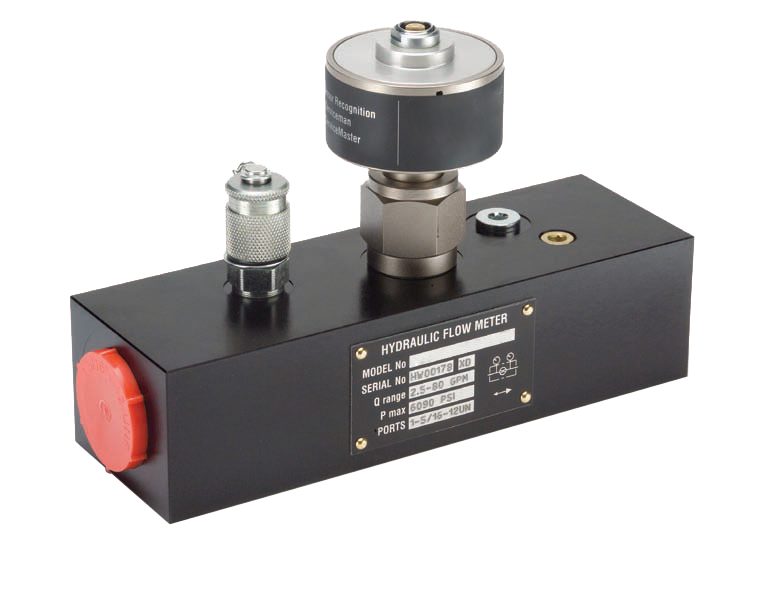

Flow Turbine, 16 GPM, #12 ORB – Sensor Recognition

$2,175.00

The flow turbine with sensor recognition (SR) can be permanently installed or used for diagnostics. The oil flow through the unit rotates the internal axial turbine. The frequencies generated are processed by digital electronics (a signal converter). Flow effects causing interference are compensated in this process. In the new, redesigned version, the signal converter is now directly integrated into the flow turbine. This allows even simpler operation and supports permanent coupling of the turbine and signal converter components that are matched to one another.

The new turbine also improves the response times/reaction times (from a previous 400 ms to 50 ms) and increases measurement accuracy. The flow turbine is available in six versions for various flow speeds. A pressure sensor can be connected in parallel to the flow turbine by way of the integrated test point. In addition, the oil temperature can also be measured using the temperature sensor connection.

The flow turbine is used in conjunction with the Serviceman, Service Master Easy, and Service Master Plus.

  • Ports: #12 SAE
  • Records flow from 0.8 to 16 GPM (3.0 to 60 Lpm)
  • Accuracy: ±1% of the displayed value
  • Operating pressure: 6000 PSI (420 bar)
  • Media temperature range: -4º to 302ºF (-20º to 150ºC)
  • Viscosity range: 10…100 cSt
  • Material Housing: Aluminum
  • Surface Treatment: Black anodized
  • Response Time: 50 ms
SKU: HC-SFM-060 Categories: ,
Print Friendly, PDF & Email

Additional information

Weight 1.6 lbs
Dimensions 7.48 × 2.44 × 4.8 in
Digital Output

Sensor Recognition (SR)

Flow Range

0.8 to 16 GPM (3 to 60 LPM)

Port Size

#12 ORB (SAE)
