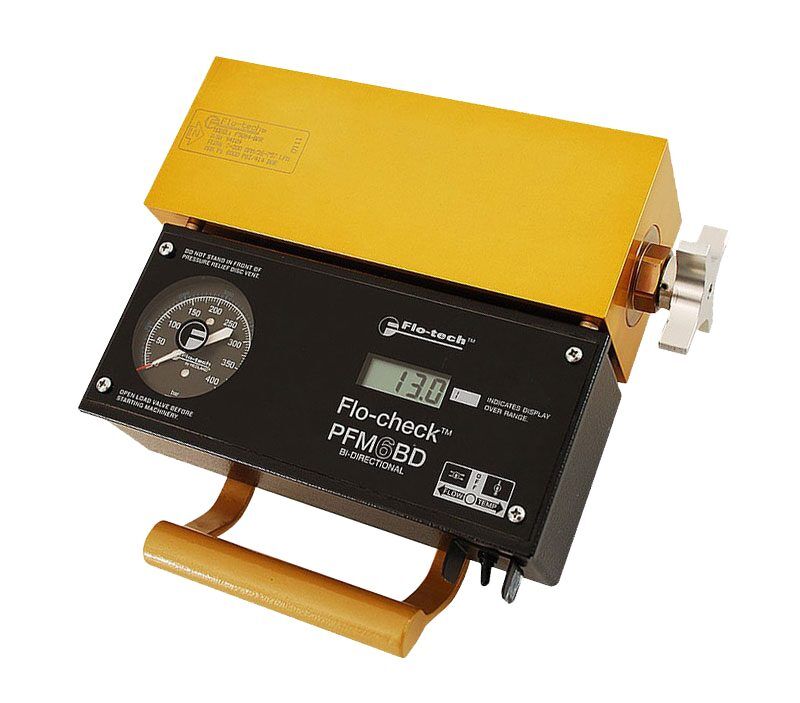

PFM6BD Digital Bi-Directional Hydraulic Tester, 85 GPM

$4,483.70

The PFM6BD digital bi-directional hydraulic tester by Flo-tech is compact, lightweight, and completely self-contained. These highly portable testers are laboratory-accurate and are designed for fast, diagnostic troubleshooting of all types of mobile or stationary hydraulic systems and components. All flow, pressure, and temperature measurements are made simultaneously from one point.

These units incorporate pressure relief disc protection, low battery/over-range indicators, and a helical-type pressure gauge, which provides pulsation dampening and high over-pressure capacity.

Unique Features:

  • Large 3-1/2″ digit LCD for flow and temperature.
  • Bi-directional.
  • Helical tube pressure gauge.
  • The turbine flow sensor gives a fast response.
  • Pressure surge protection with internal pressure relief.
  • Simple operation – one toggle switch controls power, flow, and temperature; the load valve offers fingertip control of pressure up to 6000 PSI (414 bar).
  • Platinum resistance temperature sensor.
  • SAE ports.
  • Made in the USA.

Specifications:

  • Flow Range: 4-85 GPM
  • Flow Accuracy: Forward: ±1% of full scale; Reverse: ±2% of full scale
  • Repeatability: ±0.2%
  • Turbine Response: ≤200ms
  • Fluid Temperature: -4 to +300 °F (-20 to +150 °C)
  • Ambient Temperature: -4 to +131 °F (-20 to +55 °C)
  • Flow Readout: Linearity and zero shift ±1 digit
  • Operating Pressure: Up to 6000 PSI (414 Bar, 41.4 MPa, 420 kg/cm2)
  • Readout Accuracy: ±1 digit
  • Battery: 4 AA size alkaline, ~ 50 hours of service

Note: These units are also available in metric versions. Please call or email us with questions.

SKU: HC-PFM6BD-85 Categories: ,
Print Friendly, PDF & Email

Additional information

Weight 16.5 lbs
Dimensions 11.3 × 3.6 × 10.4 in
Flow Range

4.0 to 85 GPM (15.50 to 329.4 LPM)

Port Thread

#16 ORB (SAE)

Pressure

6000 PSI (414 Bar)

Accuracy

±1%, full range

Display

Large 3-1/2" digit LCD
