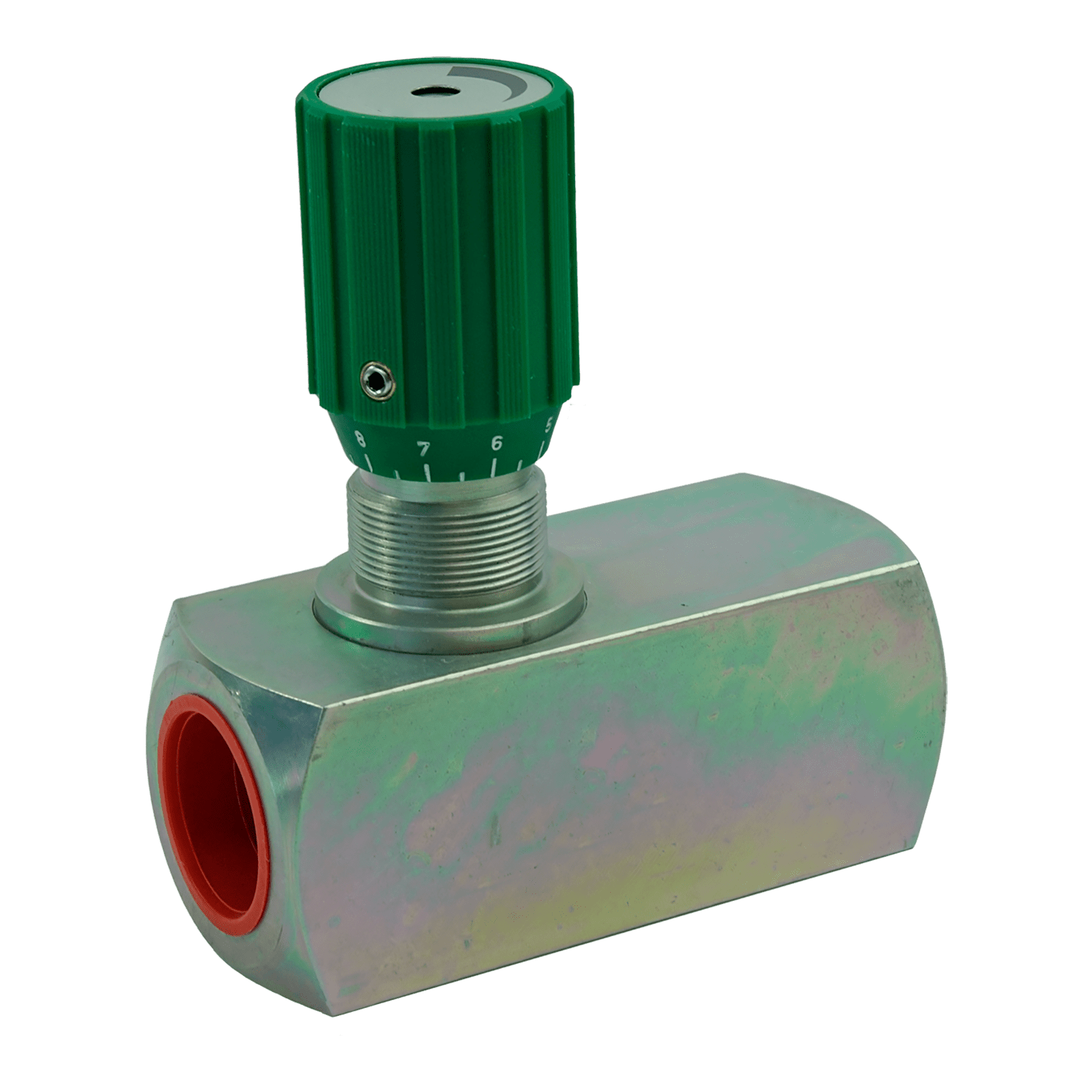

Flow Control Valve, 3/4″ NPT (5000 PSI)

$114.74

A flow control valve consists of a needle valve with an integral check valve. This combination of valves provides regulated flow in one direction and free flow in the opposite direction.

  • Size: 3/4 NPT.
  • Pressure: 5000 PSI (345 bar).
  • Carbon steel construction.
  • Viton O-rings (Standard).
  • Graduated knob and color-coded spindle to accurately control flow.
  • Set-screw located on side of adjusting knob to lock handle.
SKU: HC-FCV-12N Categories: ,
Print Friendly, PDF & Email

Additional information

Weight 2.78 lbs
Dimensions 3.46 × 1.77 × 4.7 in
Port Size

3/4 in

Port Thread

NPT

Material

Steel

Finish

Zinc/Iron Plated

Working Pressure Rating

5000 PSI
(350 Bar)

Temperature Range

-4 to 212 ºF
(-20 to 100 ºC)
