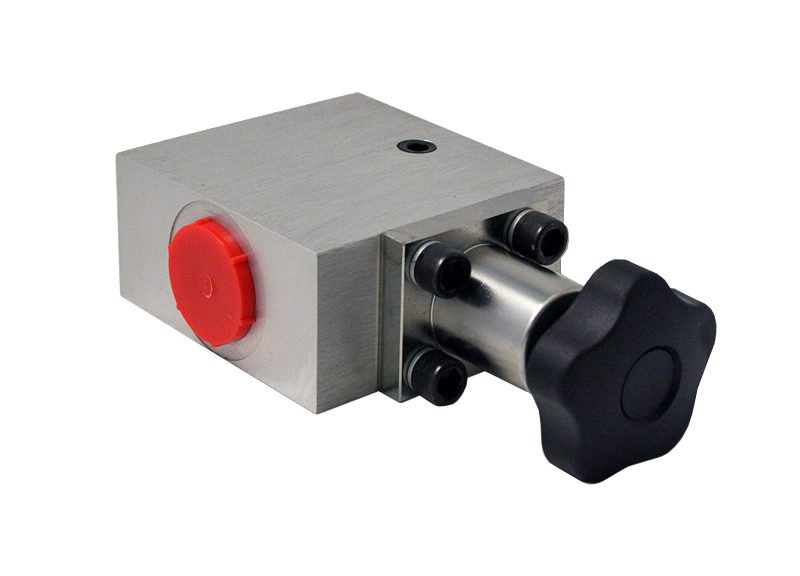

The HV series of loading valve gives smooth progressive pressure control in both flow directions allowing components such as cylinders or motors to be tested without re-plumbing the test connections.
The valve features the exclusive INTERPASS safety disc system which protects the operator, components and the environment by preventing unwanted external oil loss. In the event of overpressure the discs rupture and oil bypasses the valve internally at low pressure.
The valve features a gauge port which is ported to the inlet (in the forward direction). Combined with our flow meters or portable testers, the HV series loading valve makes testing hydraulic components and circuits on a wide range of agricultural, industrial and mobile equipment fast, efficient and safe.
Flow: Up to 100 GPM (400 lpm)
Pressure: 6000 PSI (420 bar)
INTERPASS: Internal safety protection system with replaceable burst discs
Smooth progressive pressure control
Easy to retrofit
Gauge Port: 1/4″ NPT
Note: The HV Series are designed for loading a system and are not suitable as a shut-off valve to hold a static load.
