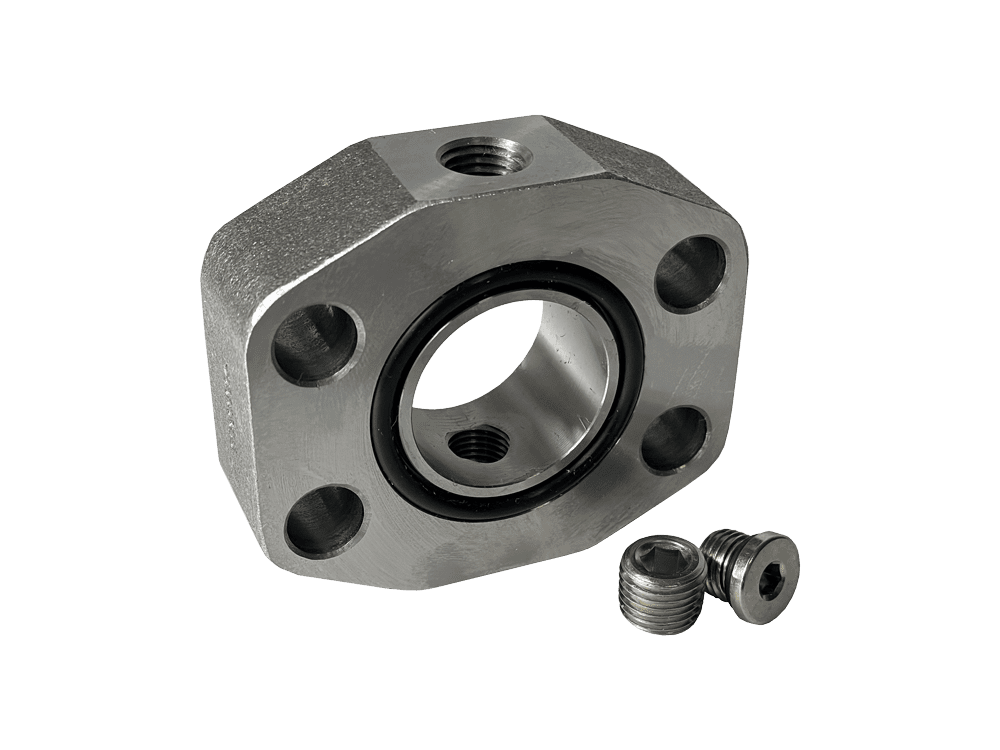

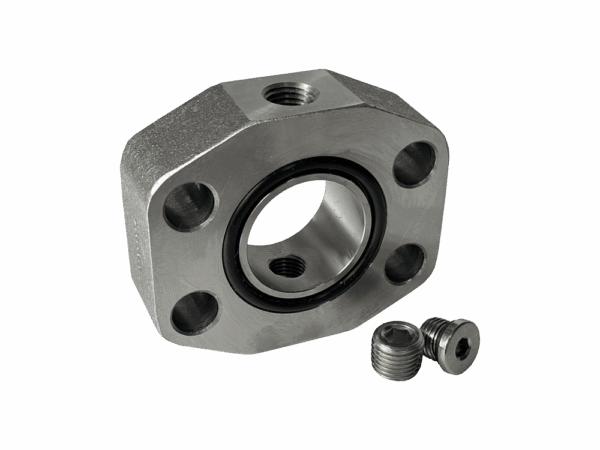

Code 61 Flange Adapter with Gauge Ports


The gauge port on the Code 61 flange adapter allows for the connection of a pressure gauge, which can be used to monitor the pressure in the hydraulic system. This is important for ensuring that the system is operating within safe limits and can help to identify potential problems before they become more serious.

The Code 61 flange adapter is typically made from high-quality materials such as stainless steel or carbon steel, which provides excellent durability and resistance to corrosion. The gauge port is usually located on the side of the flange adapter and may be threaded or designed to accept a quick-connect fitting.

Overall, the Code 61 flange adapter with gauge port is an important component in many hydraulic systems, providing a reliable and convenient way to connect components and monitor system pressure.


  • Sizes: #8 (1/2″) to #32 (2″)
  • Gauge Port: 1/4″ NPT & 7/16″ ORB (SAE)
  • Includes plugs and O-ring
  • Pressure: 3000 PSI (207 bar)
  • Conformance: SAE Code 61
