Additional information
| Weight | 0.38125 lbs |
|---|---|
| Dimensions | 3 × 1.5 × 1.5 in |
| Digital Output | Sensor-Recognition (SR) |
| Pressure Range | 0 to 8700 PSI (0 to 600 Bar) |
| Material | Stainless Steel |
| Connection | M16x2 Female Swivel (Test 20/Minimess) |

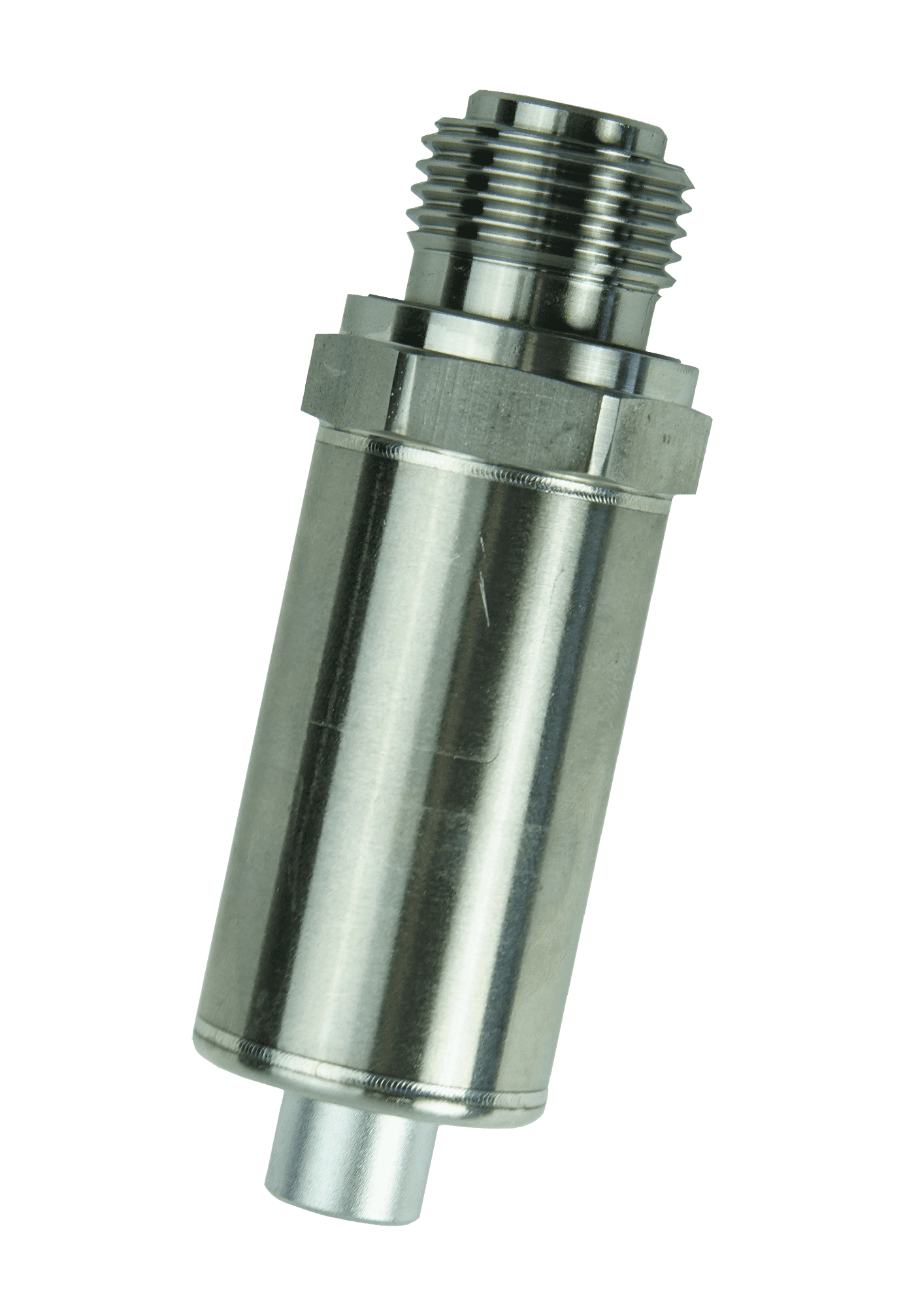

Pressure Transducer, 0 to 8700 PSI – Sensor-Recognition (SR)
$463.00
The pressure transducer connects to any M16x2 test point (Test 20/Minimess) within your hydraulic system for quick, reliable pressure readings. The transducer is used in conjunction with the Serviceman Plus (HPM4000) or Service Master CONNECT (HPM7000).
Features:
- Small size
- Robust stainless steel design
- Response times of 1 ms
- Captures peak pressure
- Laser-welded and labeled
- Two transducers of the same pressure range can measure differential pressure
Specifications:
- Pressure Range: 0 to 8700 PSI (0 to 600 bar)
- Pressure Accuracy: ±0.5% of full-scale
- Digital Connection Type: Sensor-Recognition (SR)
- Ambient Temperature Range: -4° to 185°F (-20° to 85°C)
- Media Temperature Range: -13° to 221°F (-25° to 105°C)
- Temperature Accuracy: ±1.5°F (±3°C)
- Response Time: 1 ms
- Process Connection: Male G1/2 BSPP
- Main Body: Stainless-steel
- Sealing: Viton® (FKM)
- Measure differential pressure.
- Pressure transducers do not include connecting cables
