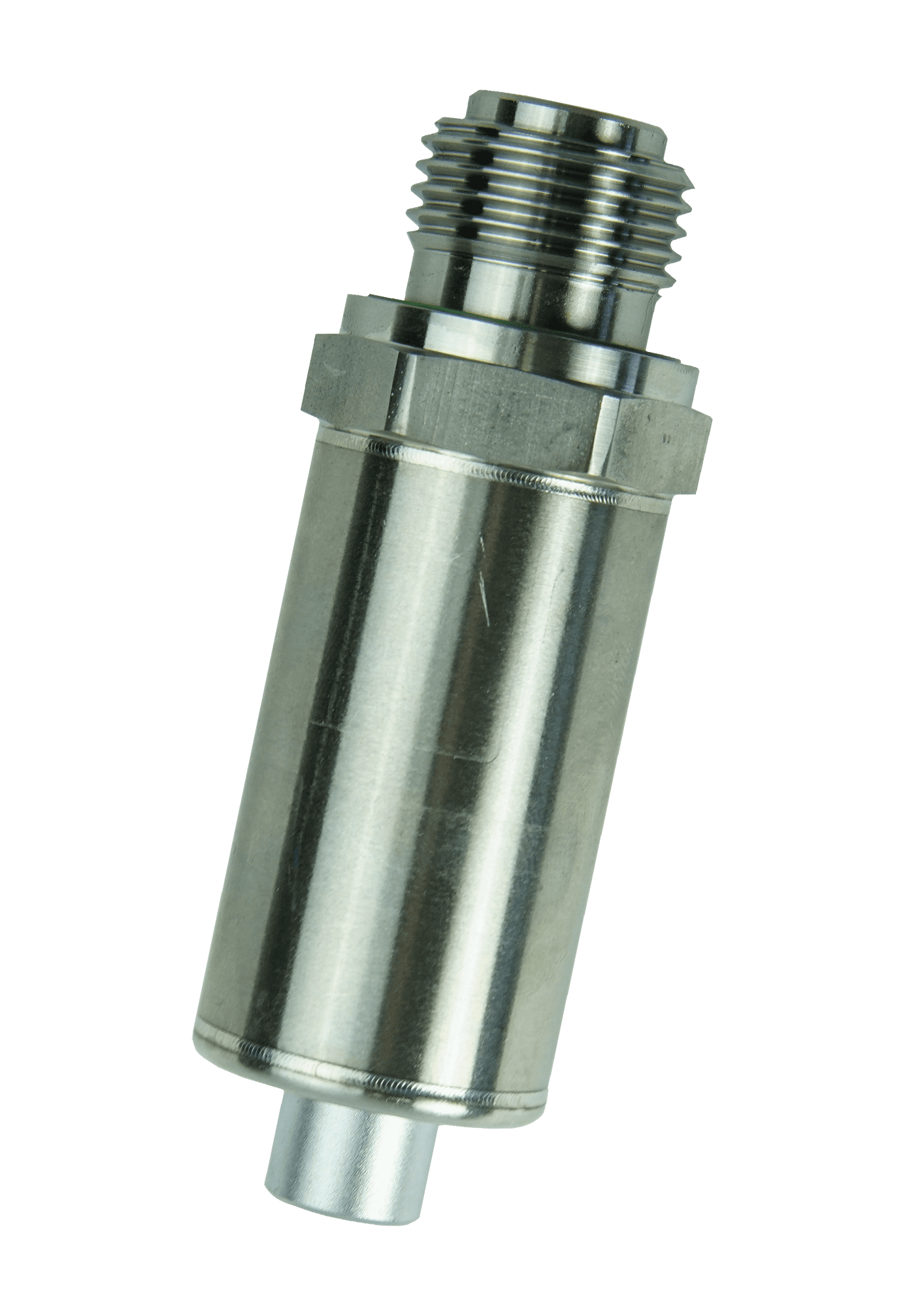

Pressure Transducer, 0 to 8700 PSI – CAN-Open Protocol

$487.00

The pressure transducer connects to any M16x2 test point (Test 20/Minimess) within your hydraulic system for quick, reliable pressure readings. The transducer is used in conjunction with the Serviceman Plus (HPM4000) or Service Master CONNECT (HPM7000).

Features:

  • Small size
  • Robust stainless steel design
  • Response times of 1 ms
  • Captures peak pressure
  • Laser-welded and labeled
  • Two transducers of the same pressure range can measure differential pressure

Specifications:

  • Pressure Range: 0 to 8700 PSI (0 to 600 bar)
  • Pressure Accuracy: ±0.5% of full-scale
  • Digital Connection Type: CAN-Open Protocol
  • Ambient Temperature Range: -4° to 185°F (-20° to 85°C)
  • Media Temperature Range: -13° to 221°F (-25° to 105°C)
  • Temperature Accuracy: ±1.5°F (±3°C)
  • Response Time: 1 ms
  • Process Connection: Male G1/2 BSPP
  • Main Body: Stainless-steel
  • Sealing: Viton® (FKM)
  • Measure differential pressure.
  • Pressure transducers do not include connecting cables
SKU: HC-PTD-600-CAN Category:
Print Friendly, PDF & Email

Additional information

Weight 0.38125 lbs
Dimensions 3 × 1.5 × 1.5 in
Digital Output

CAN-Open Protocol

Pressure Range

0 to 8700 PSI (0 to 600 Bar)

Material

Stainless Steel

Connection

M16x2 Female Swivel (Test 20/Minimess)
