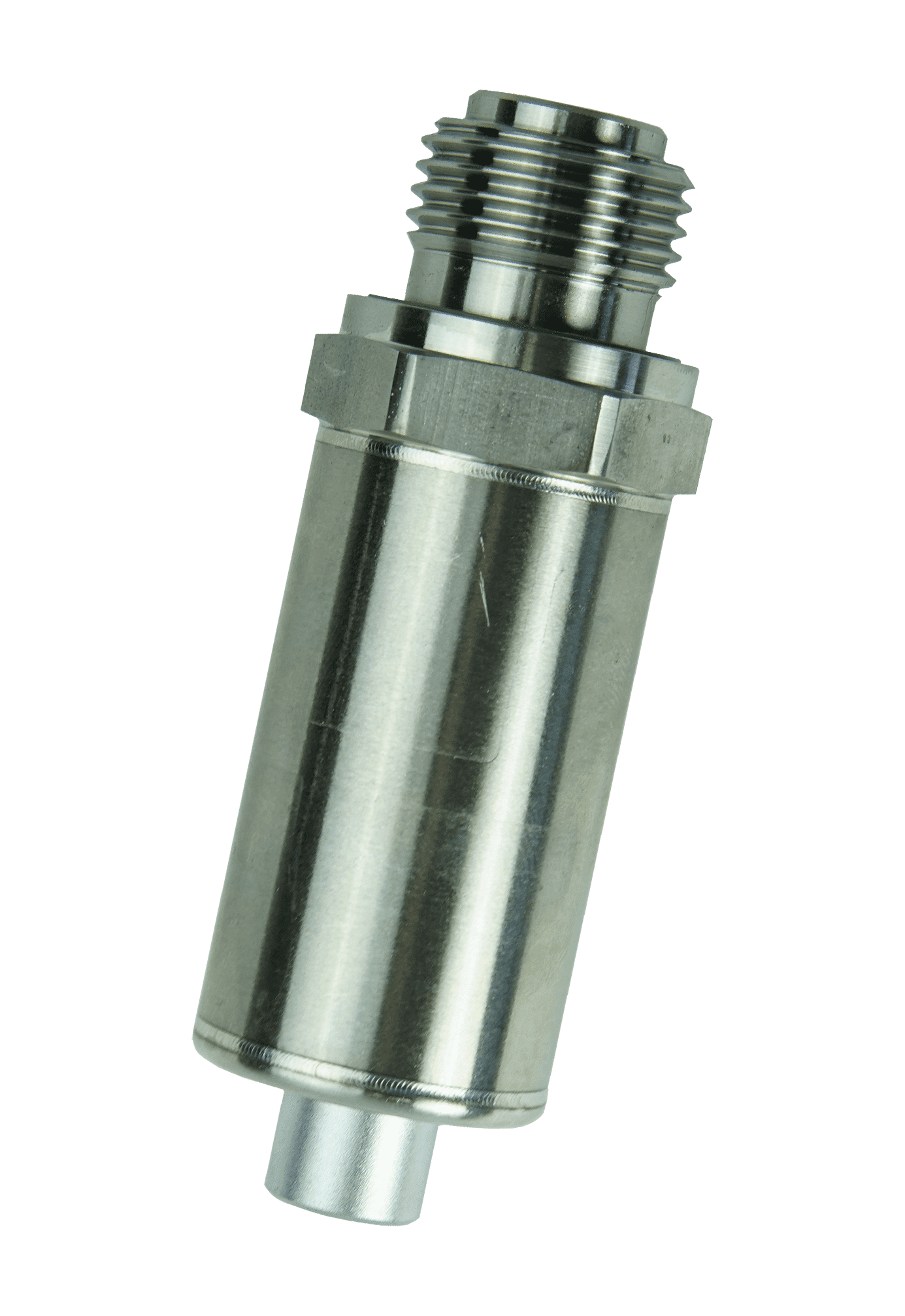

Pressure Transducer with Temperature, 0 to 2175 PSI – Sensor-Recognition (SR)

$612.00

The pressure transducer connects to any standard PD Series or M16x2 diagnostic quick disconnect with the right adapter and relays system pressure and temperature to the Digital Hydraulic Tester.

Specifications:

  • Pressure Range: 0 to 2175 PSI (0 to 150 bar)
  • Pressure Accuracy: ±0.5% of full-scale
  • Digital Connection Type: Sensor-Recognition (SR)
  • Ambient Temperature Range: -4° to 185°F (-20° to 85°C)
  • Media Temperature Range: -13° to 221°F (-25° to 105°C)
  • Temperature Accuracy: ±1.5°F (±3°C)
  • Response Time: 1 ms
  • Process Connection: Male G1/2 BSPP
  • Main Body: Stainless-steel
  • Sealing: Viton® (FKM)
  • Measure differential pressure.
  • Pressure transducers do not include connecting cable or test point adaptor.

NOTE: In order to measure differential pressure, two transducers of the same pressure range must be used.

SKU: HC-PTD-150-T Category:
Print Friendly, PDF & Email

Additional information

Weight 0.38125 lbs
Dimensions 3 × 1.5 × 1.5 in
Pressure Range

0 to 2175 PSI (0 to 150 Bar)

Digital Connection Type

Sensor-Recognition (SR)

Material

Stainless Steel

Ambient Temperature Range

-4 to 185 ºF
-20 to 85 ºC

Media Temperature Range

-13 to 221 ºF
-25 to 105 ºC
