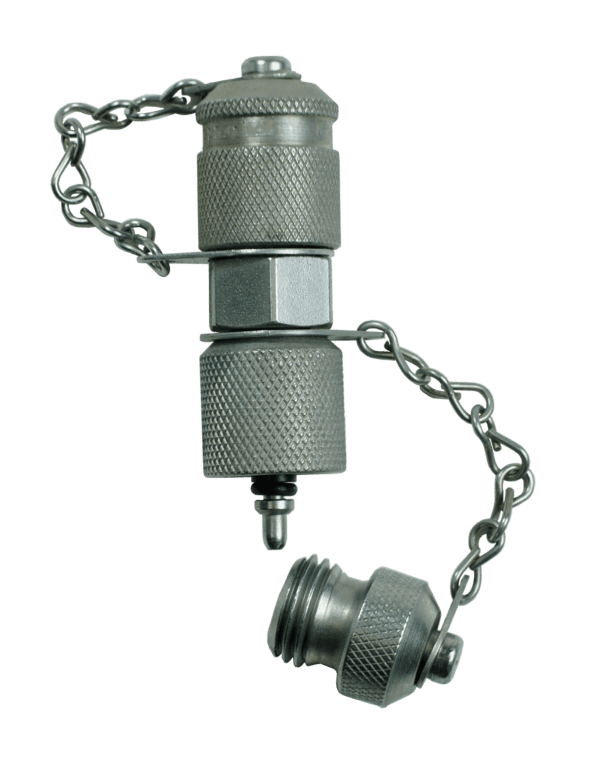

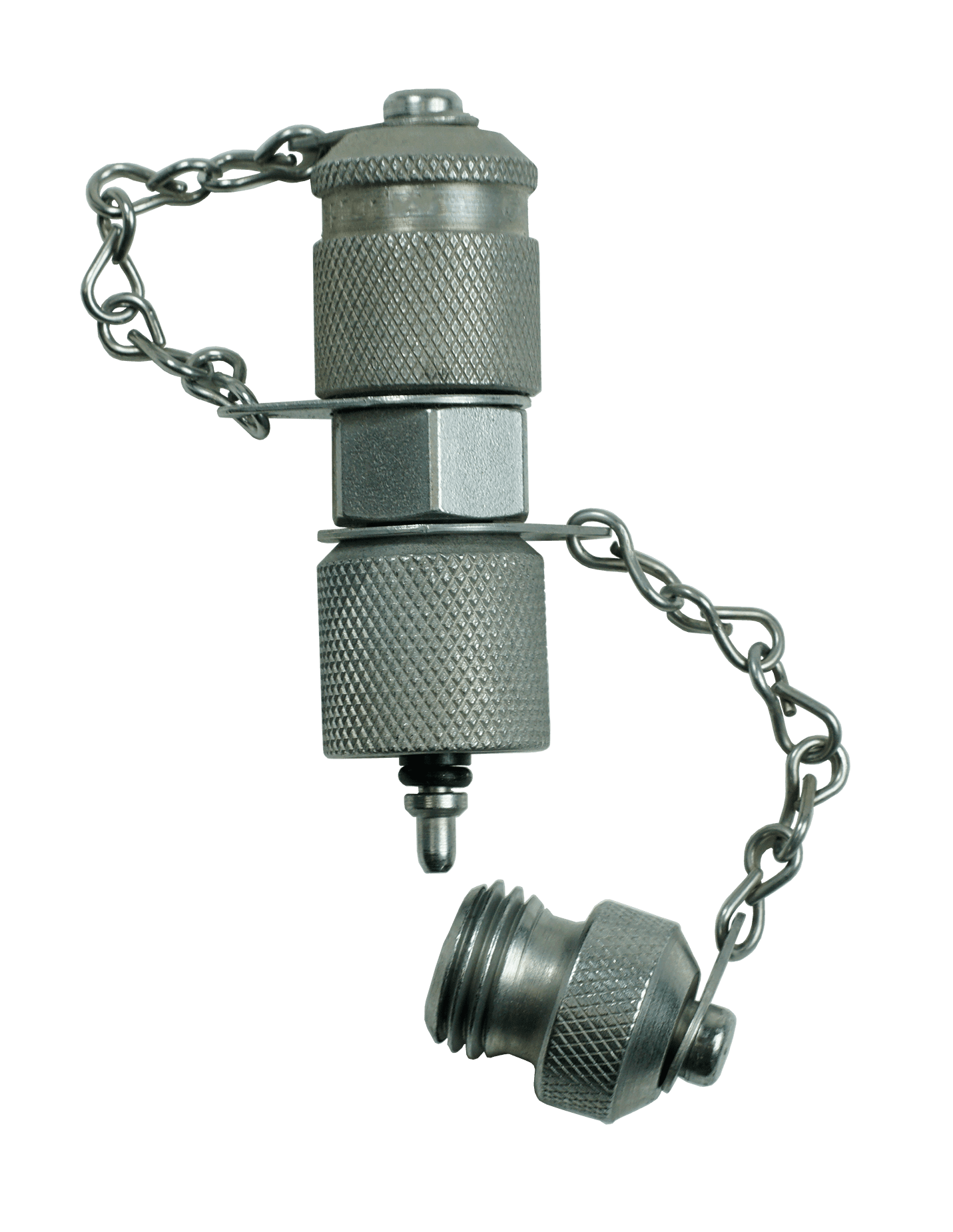

HSP Conversion Adapter – M16x2 to 5/8″-14 BSF (HSP & Steck)


The HSP conversion adapter has been constructed to enable an adaptation between the 5/8″-14 BSF system (HSP & Steck) to the worldwide used M16x2 system. Just screw our adapter onto the HSP & Steck test coupling (test point). The result is a regular M16x2 system connection. Now you can use your hoses and fittings from the M16x2 system.


  • Material: Steel
  • Surface: Zinc nickel, transparent, CrVI-free
  • Pressure rating: 9000 PSI (630 bar)
  • Temperature rating: -4 to 212˚F (-20 to 100˚C)
  • Media: Hydraulic oils and mineral-based fluids

Compatible with JCB machines.
