Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 11 × 9 × 4 in |
| Description | Analog Input Module |
| Inputs | 3 sensor inputs (up to 6 channels) with sensor recognition for SR sensors |

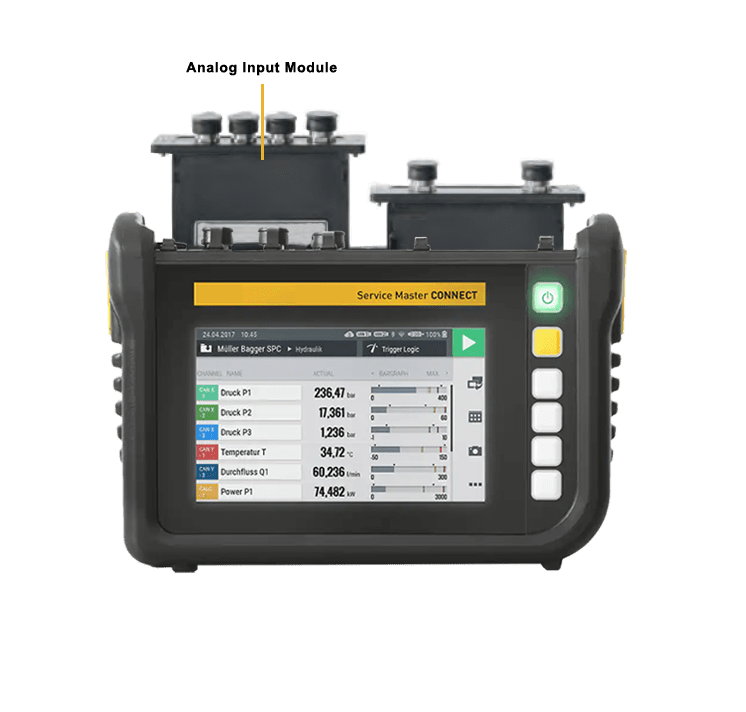

Service Master CONNECT (HPM7000) – Analog Input Module
$955.00
The Service Master CONNECT (HPM7000) features a unique modular system which means two input Modules can be added or changed by the user, allowing you to upgrade the device overtime to meet the needs of the most demanding application.
- The Analogue Input Module enables back compatibility with sensors that have Sensor Recognition (SR). It also enables connection to current (e.g. 0-20 mA or 4-20 mA) and/or voltage (e.g. 0-5, 0-10 V) sensors.
Measurements:
- Pressure: PSI and bar (Pressure Transducer)
- Temperature: Fahrenheit and Celsius
- Volume Flow: US GPM and LPM (Flow Turbine)
- Rotational Speed: RPM
Technical Data:
- Inputs With Sensor Recognition: 3 sensor inputs (up to 6 analog measurement channels) with sensor recognition for SR sensors
- Inputs For External Sensors: M12x1, 5 pin with SPEEDCON®, Plug
- Supply: 24 VDC 100 mA
- Input Signal Range: -10…+10 V, 0/4…20 mA
- Accuracy: ±0.1 % FS
- Operating Temperature Range: 14 to 122 °F (-10 to 50 °C)
- Operating Temperature: 32°F – 122°F (0°C – 50°C)
- Weight: 0.34 lbs (152 g)
