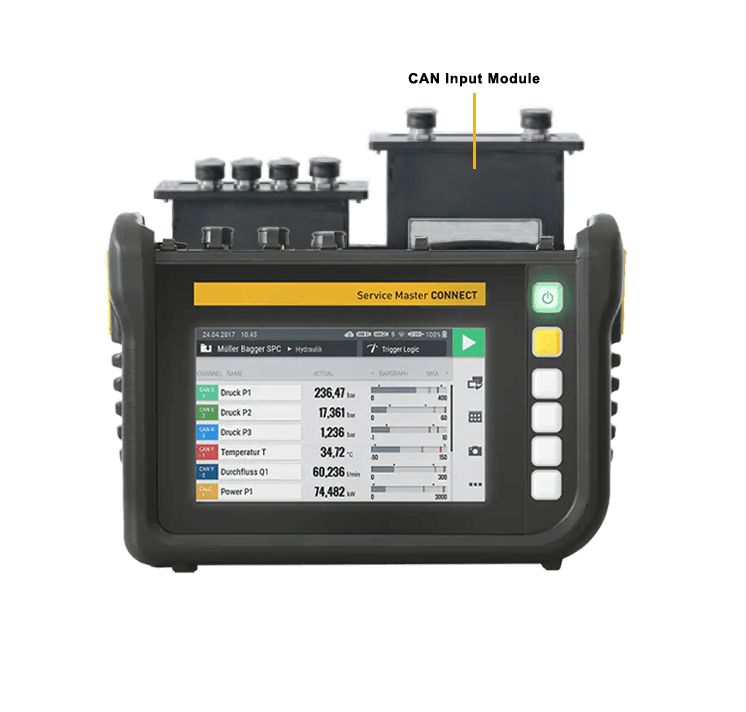

Service Master CONNECT (HPM7000) – CAN Input Module

$955.00

The Service Master CONNECT (HPM7000) features a unique modular system which means two input Modules can be added or changed by the user, allowing you to upgrade the device over time to meet the needs of the most demanding application.

  • The CAN Input Module allows the connection of up to 48 CAN, CANOpen, J1939, or any mixture of several CAN protocols in a passive way (no power is supplied to the sensors from this module). This allows the user to ‘listen’ to the other CAN signals traveling on a bus, without disturbing them.

Measurements:

Technical Data:

  • Connections: 2 x M12 5-pin female
  • Designation: CAN1xx, CAN2xx, each galvanically isolated
  • Channels CAN1xx: 24
  • Channels CAN2xx: 24
  • Standards: CAN 2.0 A, CAN 2.0 B
  • Protocol Support: CANopen, SAEJ1939, and CAN generic, mixed operation of several CAN protocols possible
  • Terminating resistor: Can be switched on/off
  • Signal Connection Supply: Passive, no external supply
  • Operating Temperature Range: 14 to 122 °F (-10 to 50 °C)
  • Weight: 0.3 lbs (127 g)
Print Friendly, PDF & Email

Additional information

Weight 0.4 lbs
Dimensions 11 × 9 × 4 in
Description

CAN Input Module

Inputs

2 CAN bus networks, 24 CAN bus channels each for connection with CAN (CAN 2.0 A, CAN 2.0 B) systems like CANopen, CAN generic, and SAE-J1939.
