Loading Valve Assembly with Built-In Safety and A Load Sensing Port, #16 ORB, 3500 PSI (For Inline Flow Meters)

$725.00

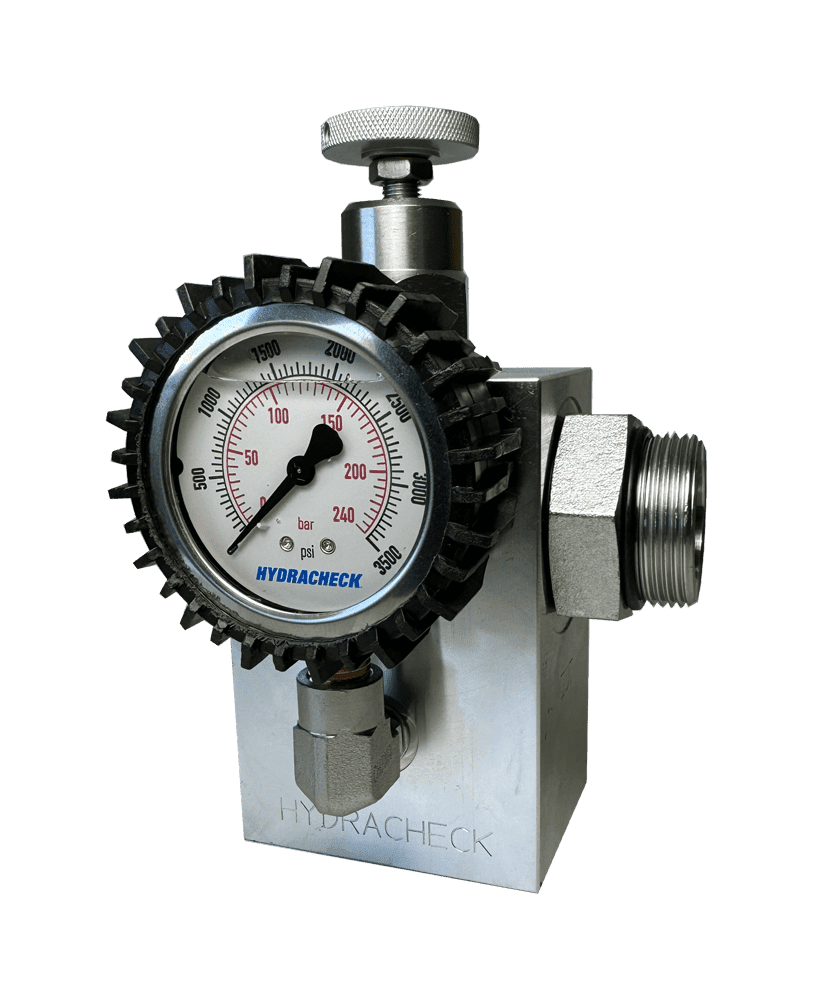

The HydraCheck loading valve with built-in safety features* is the ideal solution for testing pumps and hydraulic systems with a flow meter. This innovative valve includes an extra port on the inlet side, allowing precise testing of pumps with load sensing capabilities—a first in the industry. Additionally, the adjustable port enables easy repositioning of the pressure gauge, so users can operate the control knob with either hand for added convenience. Equipped with a pressure gauge and ORB fitting, this loading valve connects seamlessly to your flow meter, providing a quick and efficient setup for hydraulic pump testing.

Includes:

  • Loading valve with built in safety (One-way flow).
  • 3500 PSI (241 bar).

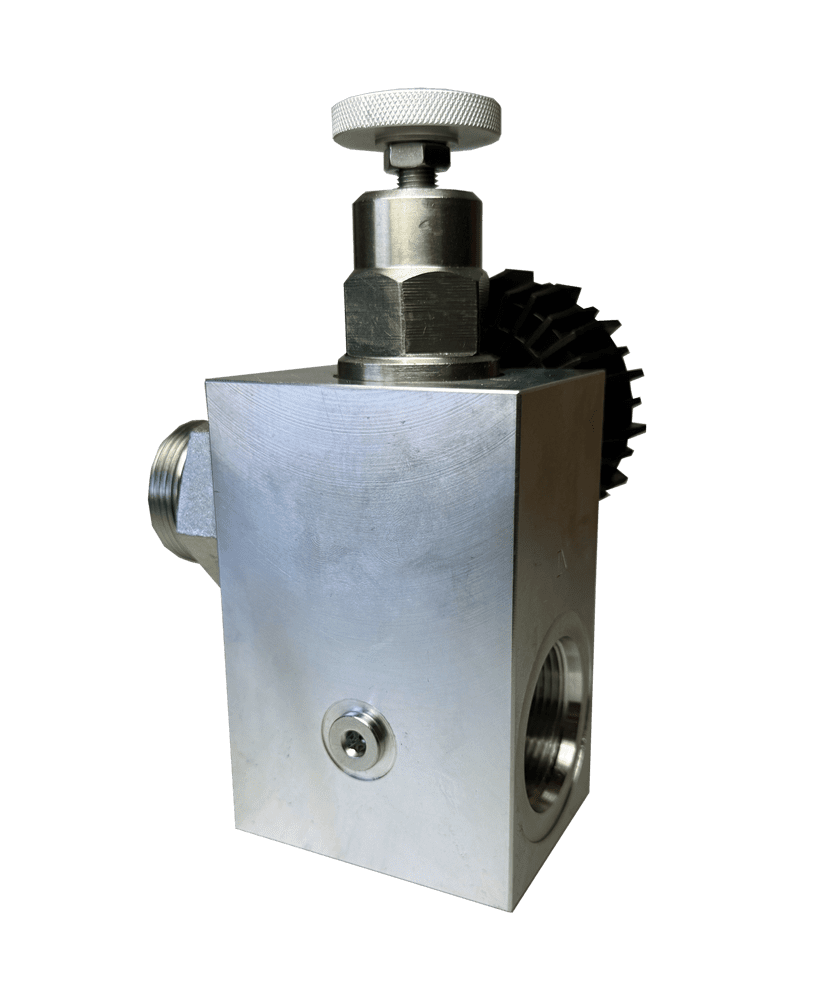

  • Load sensing port – #4 ORB (7/16-20 SAE)
  • #16 ORB (1-5/16-12 SAE) ports.
  • Comes with SAE connector for flow meter connection.
* Loading valve does not use a burst disc.
SKU: HC-LVA-16-LS-3500 Categories: ,
Print Friendly, PDF & Email

Additional information

Weight 3.6 lbs
Dimensions 6.5 × 3.5 × 7.5 in
Pressure

3500 PSI (241 Bar)

For Flow Meters Up To

50 GPM (189 LPM)

Port Thread

#16 ORB (SAE)
