Hydrostatic Transmission Pressure Gauge Test Kit

$523.00

A single hydraulic system can have components and or sub-systems that operate at different pressures. For example, the pressure in the housing of a hydraulic pump or motor cannot exceed 70 PSI while the system pressure might be 6000 PSI. It is not possible to use a 6000 PSI analog gauge to read pressures as low as 70 PSI.

There are instances when more than one pressure gauge is needed to set up and/or troubleshoot a hydraulic system. Take for example a closed-loop system where it’s necessary to monitor pump case pressure, charge pressure, and system pressure simultaneously. Our hydrostatic transmission pressure gauge test kit is ideal for this purpose.

Gauge scales (pressures) can be changed to suit your unique requirements. The kit also consists of 60” Microbore hoses, which allow technicians to observe pressure while keeping them a safe distance from moving parts. They also allow technicians to observe pressures while operating a machine, which in the case of hydrostatic transmissions is oftentimes necessary.

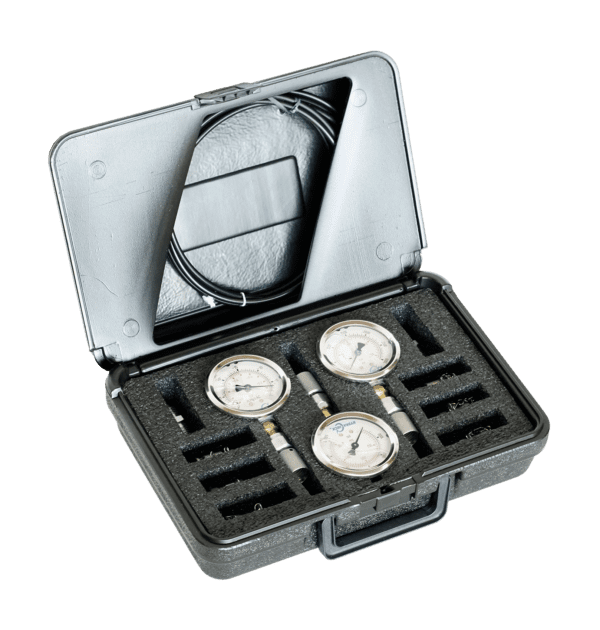

Hydrostatic Transmission Pressure Gauge Test Kit includes:

  • 0 to 100 PSI (0 to 6.9 bar) pressure gauge with direct gauge adapter.
  • 0 to 600 PSI (0 to 41.4 bar) pressure gauge with direct gauge adapter.
  • 0 to 6000 PSI (0 to 414 bar) pressure gauge with direct gauge adapter.
  • Three (3) 60″ (1524 mm) microbore hose assemblies.
  • Three (3) microbore hose unions (connect hoses for additional length).
  • One (1) 1/4″ NPT pressure test connector.
  • One (1) 5/16″ SAE pressure test connector.
  • Two (2) 7/16″ SAE pressure test connectors.
  • One (1) 9/16″ SAE pressure test connector.

Pressure gauges are 2-1/2″ glycerine-filled, stainless-steel, Bourdon tube-type, dual scale (imperial and metric).

Note: Gauge pressures can be substituted at no extra charge (excluding digital gauges). Please indicate during checkout if you are substituting gauges.

SKU: HC-TKH1 Categories: ,
Print Friendly, PDF & Email

Additional information

Weight 5 lbs
Dimensions 12 × 4 × 7.5 in
