24 Hour Shipping On All In-Stock Items

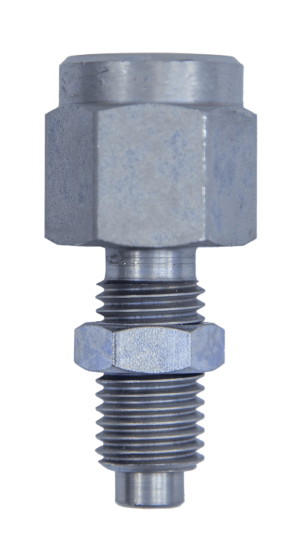

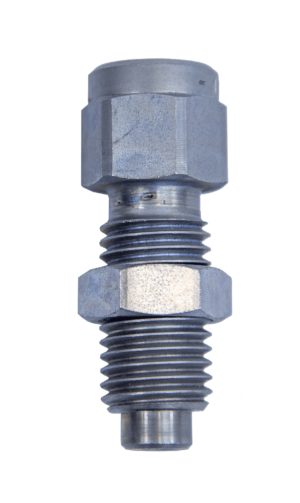

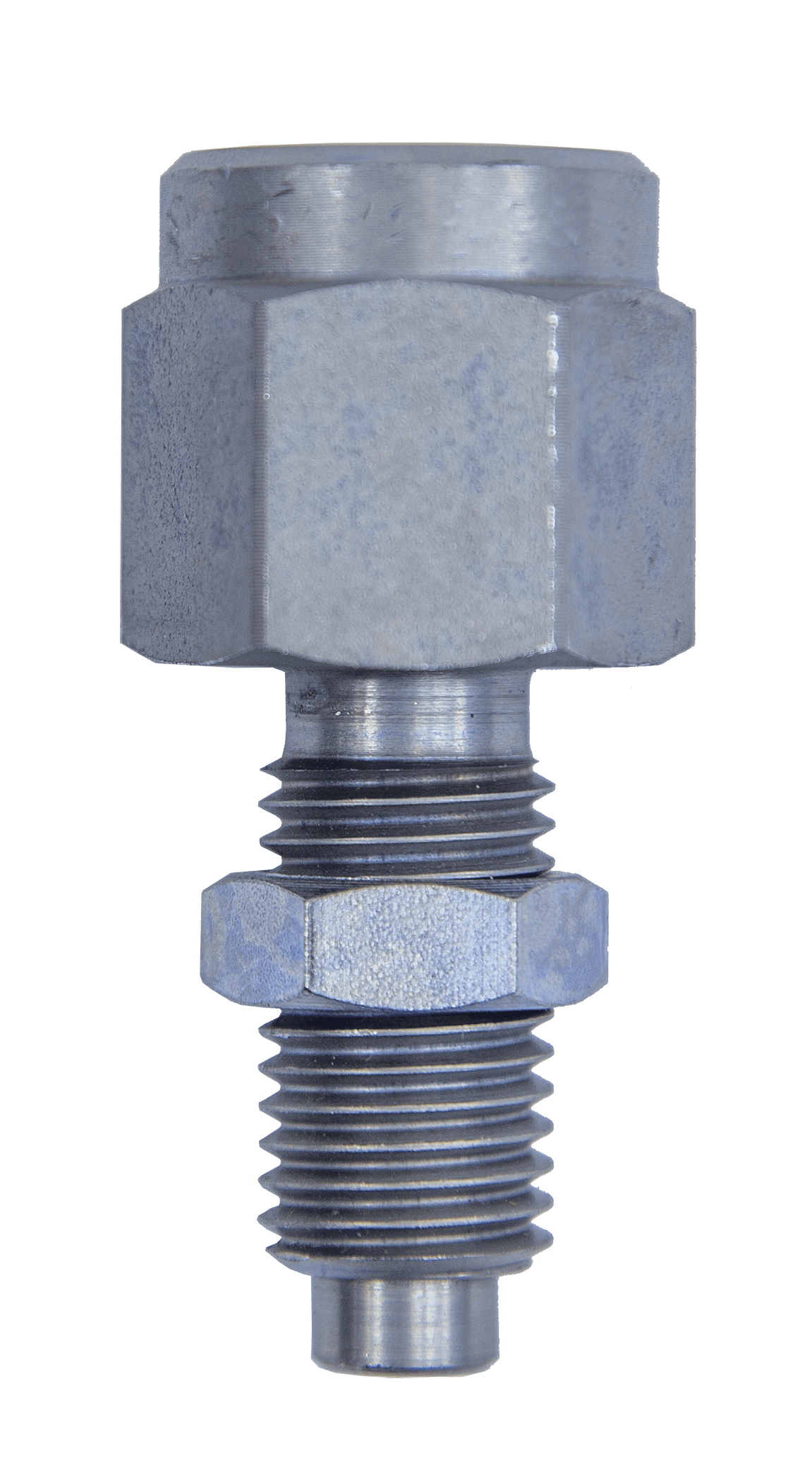

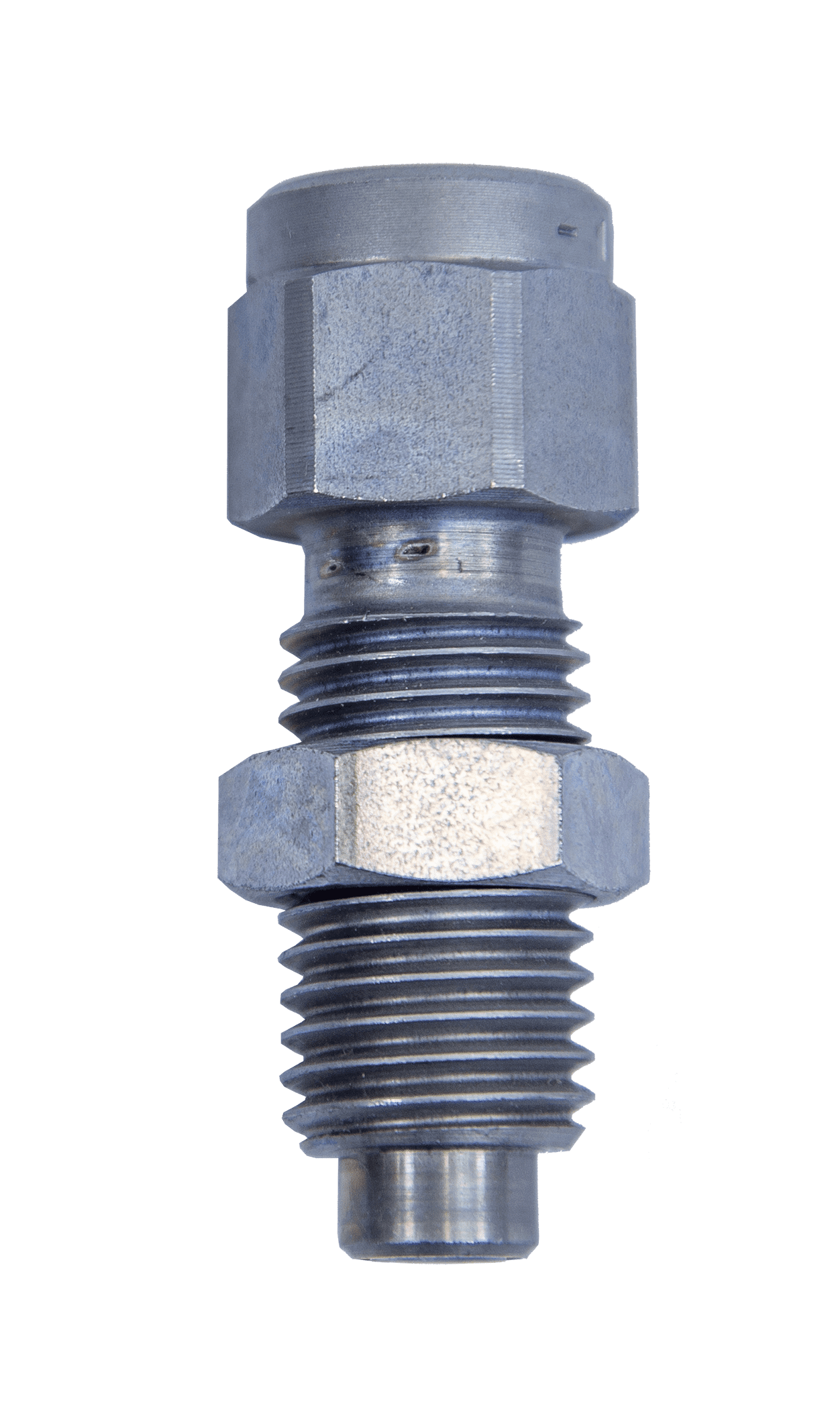

M16x2 Bulkhead Adapter

Hose/Gauge Bulkhead Adaptors – Test 20 (M16x2)

$24.79 – $45.60

The hose/gauge bulkhead adaptor makes it convenient for you to “solid mount” a pressure gauge to a console or bulkhead. The microbore hose assembly conveniently screws onto the bulkhead adaptor. The male bulkhead side has an M16x2 connection.

Specifications:

Material: Steel
Maximum Working Pressure: 9137 PSI (630 bar)
Connect Under Pressure: 5800 PSI (400 bar)
Temperature Rating: -4 to +212˚F (-20 to +100˚C)
Media: Suitable for hydraulic oils and other mineral-based fluids
Made in Europe

Category: Diagnostic Quick Disconnects

Hose Gauge Adapter, 1/4″ NPT
HC-GAH-1/4NPT

1/4 NPT

9137 PSI (630 Bar)

Up to 5800 PSI (Up to 400 Bar)

$30.32

Hose Gauge Adapter, 1/2″ NPT
HC-GAH-1/2NPT

1/2 NPT

9137 PSI (630 Bar)

Up to 5800 PSI (Up to 400 Bar)

$38.47

Hose Gauge Adapter, 7/16″ ORB
HC-GAH-7/16UNF

7/16 SAE

9137 PSI (630 Bar)

Up to 5800 PSI (Up to 400 Bar)

$45.60

Hose Gauge Adapter, 9/16″ ORB
HC-GAH-9/16UNF

9/16 SAE

9137 PSI (630 bar)

Up to 5800 PSI (Up to 400 Bar)

$34.84

Hose Gauge Adapter, G1/4
HC-GAH-G1/4

G1/4 BSPP

9137 PSI (630 bar)

Up to 5800 PSI (Up to 400 Bar)

$24.79

Hose Gauge Adapter, G1/2
HC-GAH-G1/2

G1/2 BSPP

9137 PSI (630 Bar)

Up to 5800 PSI (Up to 400 Bar)

$30.32
