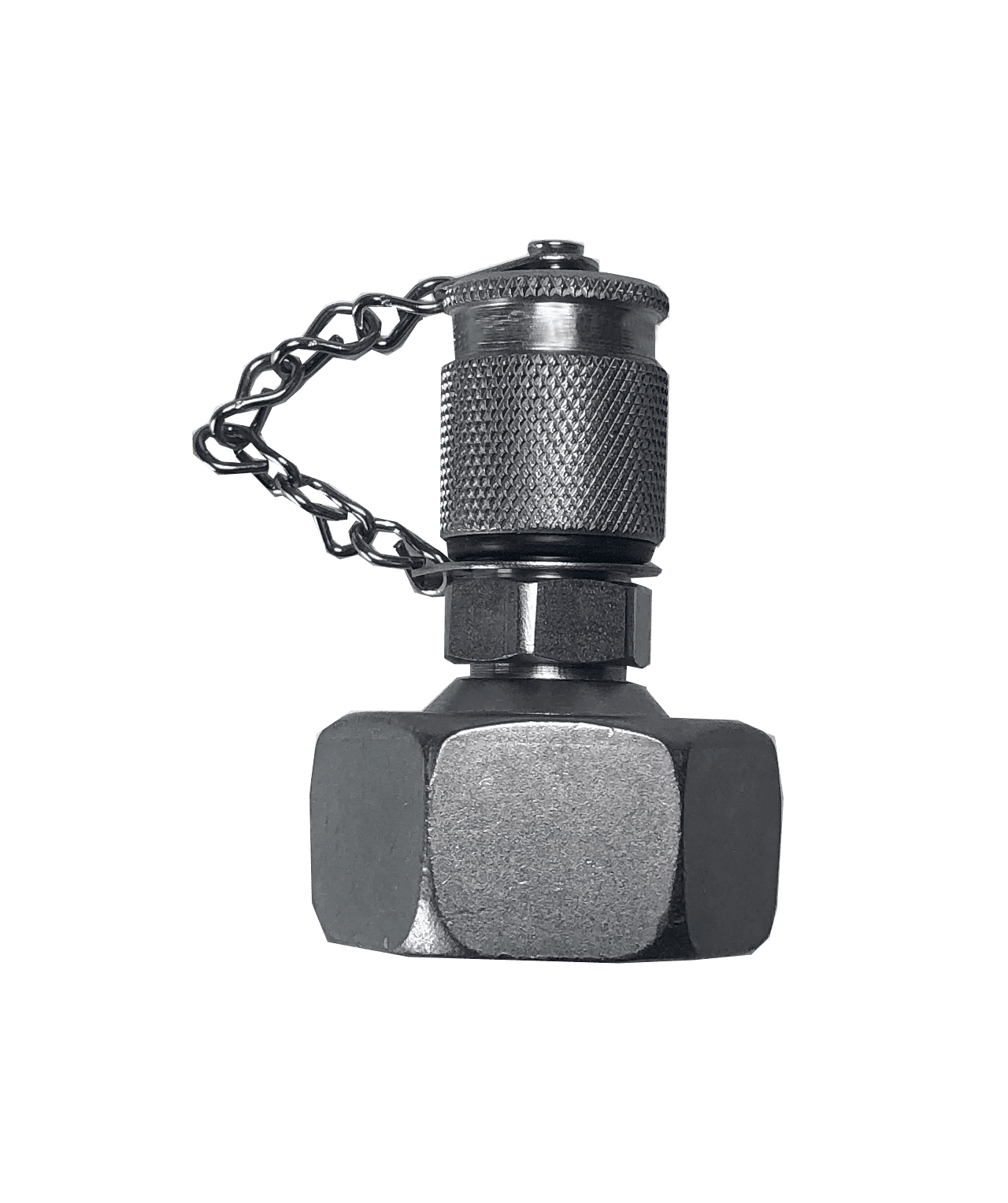

Steel Test Point with 24˚ Taper/ O-ring (DKO/DIN) – Test 20 (M16x2)


The test point (Minimess/Test 20) is designed for monitoring and control of pressure. The test point connection is M16x2.0. The test point comes with a female swivel DIN connection. The advantages to using the Test 20 coupling are system testing at working pressure, leak-proof before the ball check is open, protective cap, and minimizes the introduction of contamination in a hydraulic system.

Use in conjunction with the direct gauge adapter.


  • Connection: Light and Heavy Series DIN 2353 Female Swivel
  • Material: Steel
  • Seal: Viton
  • Maximum Working Pressure: 9137 PSI (630 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +392˚F (-20 to +200˚C)
  • Media: Suitable for hydraulic oils and other mineral-based fluids
  • Made in Germany
